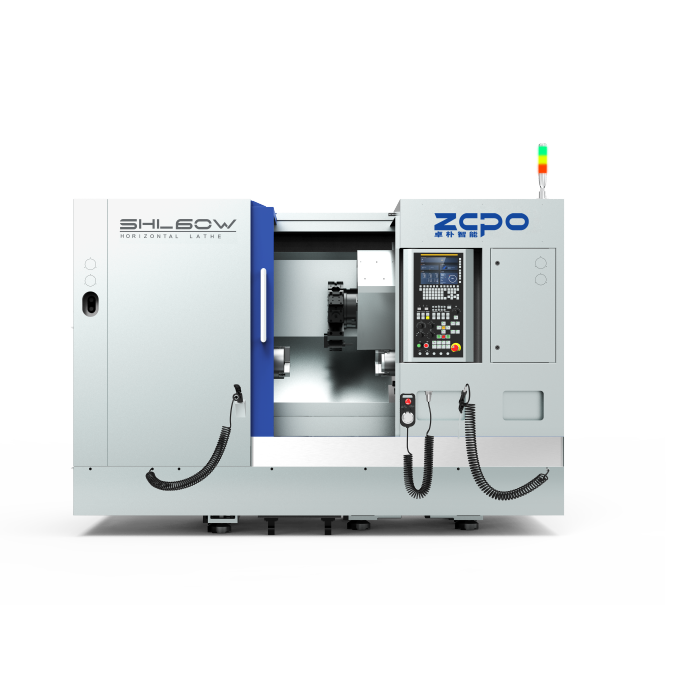

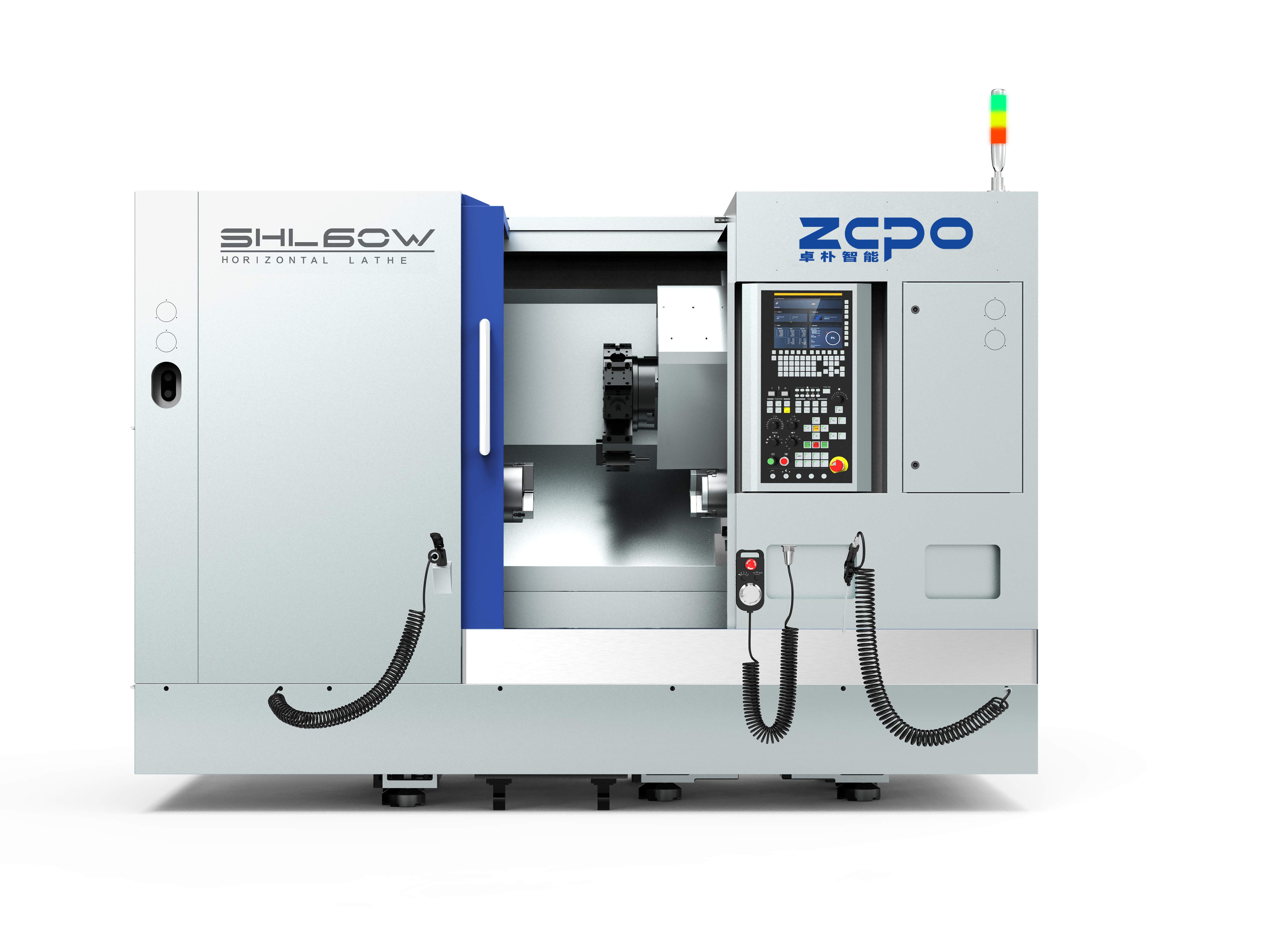

SHL60W Dual spindles Y-axis
Dual-spindles compound function horizontal turning center.
| Categories | CNC Horizontal Lathe |
|---|---|
| Trademark/Brand | ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM |
| Model | SHL60W |
| Brand | ZOPO Intelligent |
| CNC | Fanuc/GNC/KND |
| Spindle Hole Taper | A2-6/A2-5 |
| Control Mode | Semi-closed loop |
| Update Time | Nov 21,2025 |
Detail Information
SHL60W
High Capability
Dual spindles
Interpolation Y axis
Φ610mm
Max.Swing Over Bed
550mm
Max.Turning Length
Φ400mm
Max.Turning Dia
A2-6
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic

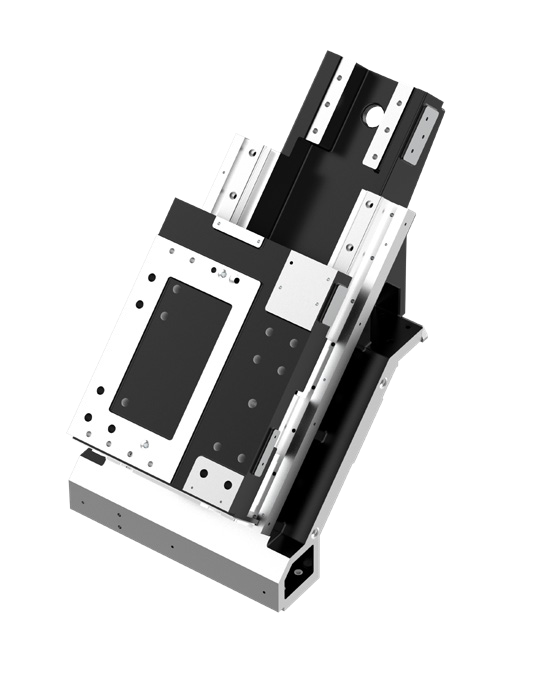

Inclined Machine Bed
45° overall stepped inclined bed design
provides high cutting and milling rigidity

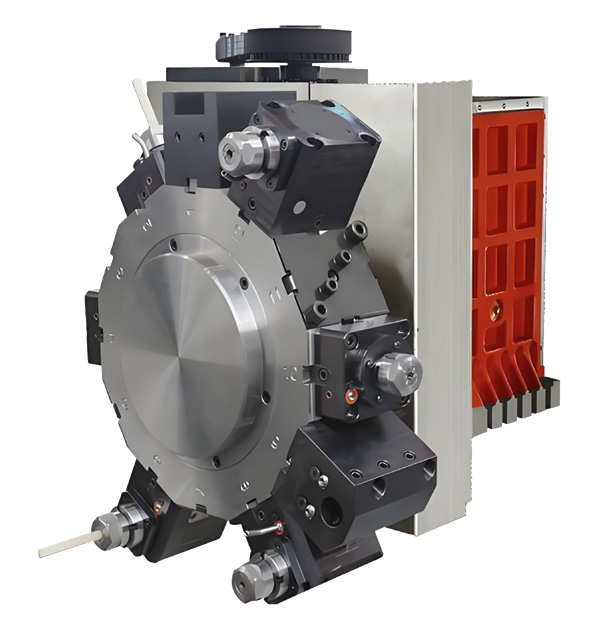

Offset Driven Turret
BMT55 Y axis offset driven
turret realizes turning and milling
compound processing.

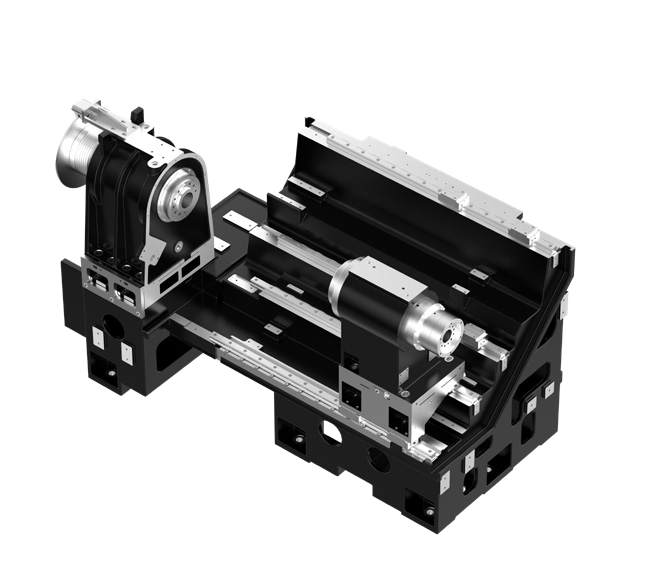

Strengthen Ribs
Hollow structure with larger span
and reinforced ribs.
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ610mm
- Max.Turning Length
- 550mm
- Max.Turning Dia
- Φ400mm
- Max. Swing Over Carriage
- Φ400mm
- X/Y/Z/B Axis Travel
- 240/±50/555/550mm
Spindle
Unit
- Spindle Hole Taper
- A2-6/A2-5
- Max. Passing Bar Dia.
- Φ50/44mm
- Spindle Speed Range
- 50-4500/50-5000rpm
- Power
- 11/15kW-7.5/11kW
Feed
Unit
- Rapid Feed Rate
- 24/10/30/30m/min
Chuck
Unit
- Chuck size
- 8/6'' inch
Turret
Unit
- Standard Turret
- 12T（Y-axis Driven）
- Nearby Tool Select
- Yes
Machine
Unit
- Machine Dimension
- 3000*1850*2050mm
- Machine Weight
- 5000kg
