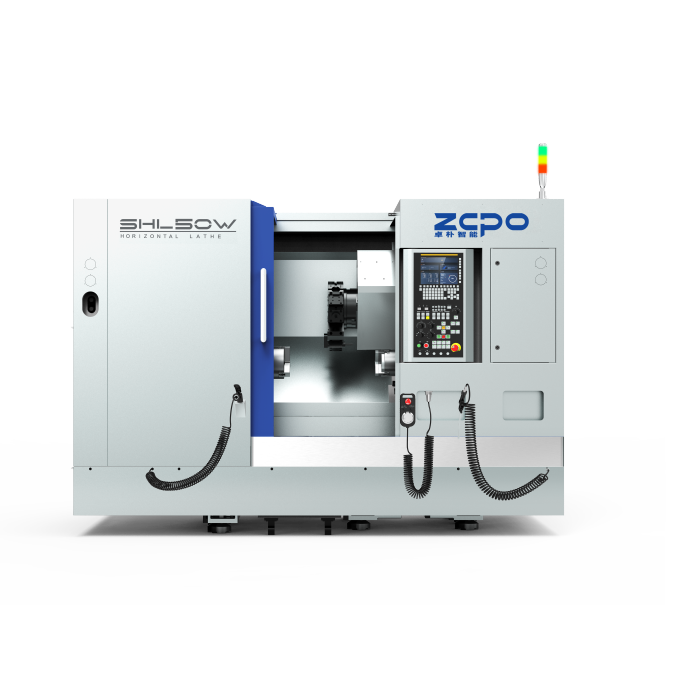

SHL50W Dual spindles Y-axis
SHL50W Dual spindles Y-axisSHL50W Dual spindles Y-axis

SHL50W Dual spindles Y-axis

Dual-spindles compound function horizontal turning center.
CategoriesCNC Horizontal Lathe
Trademark/BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelSHL50W
BrandZOPO Intelligent
CNCFanuc/GNC/KND
Spindle Hole TaperA2-6/A2-5
Control ModeSemi-closed loop
Update TimeNov 21,2025
Contact Now
Detail Information

SHL50W

High Capability

Dual spindles

Interpolation Y axis

SHL50B

Φ550mm

Max.Swing Over Bed

700mm

Max.Turning Length

Φ350mm

Max.Turning Dia

A2-6

Spindle Hole Taper

  • Model
  • Appearance
  • Characteristic
  • Parameters
  • Contact Us

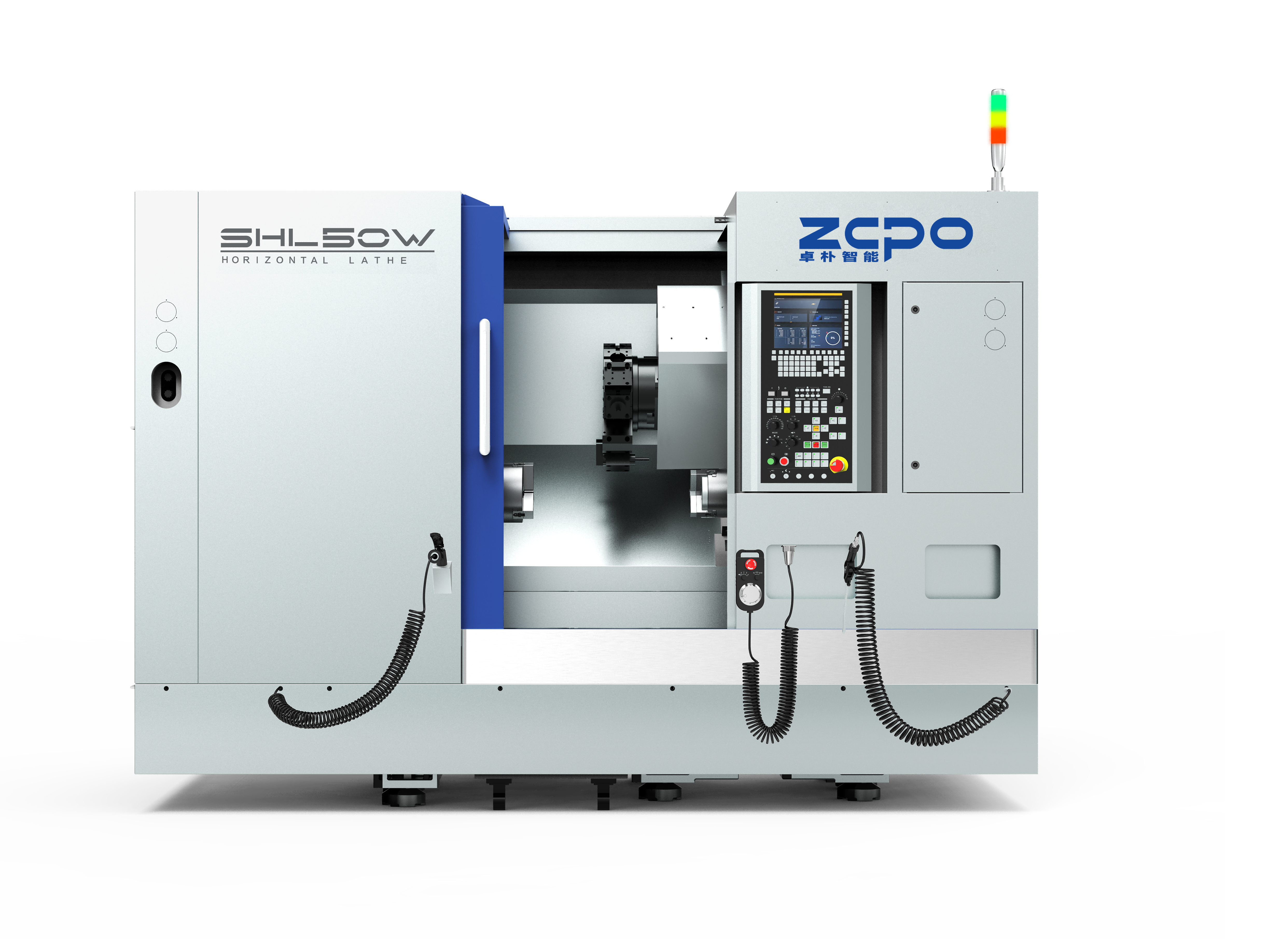

Appearance
SHL50B
Characteristic
床鞍设计

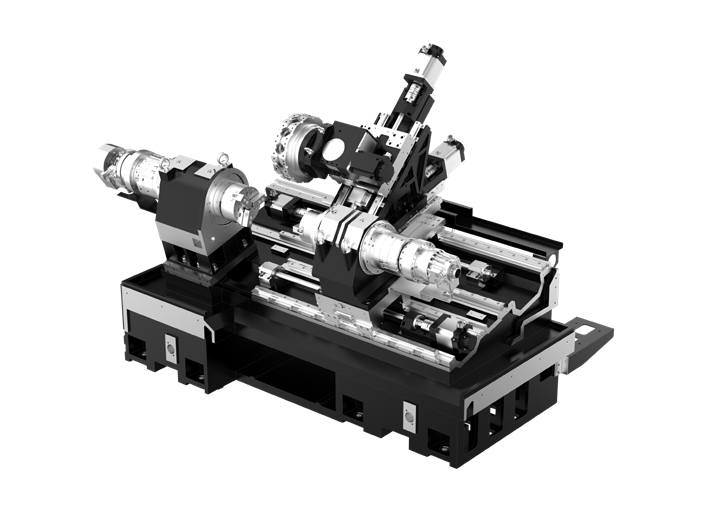

Inclined Machine Bed


15° overall stepped inclined bed,
low center of gravity, strong torsion
resistance.
Multiple interfaces reserved for high
expansion capability.

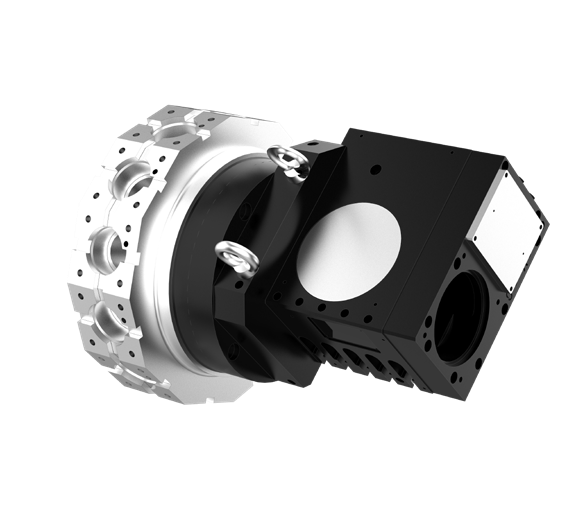

Offset Driven Turret


Offset driven turret frees up
space for sub spindle processing;
High cutting and milling rigidity
with processing quality
高刚性伺服刀架
水平阶梯导轨

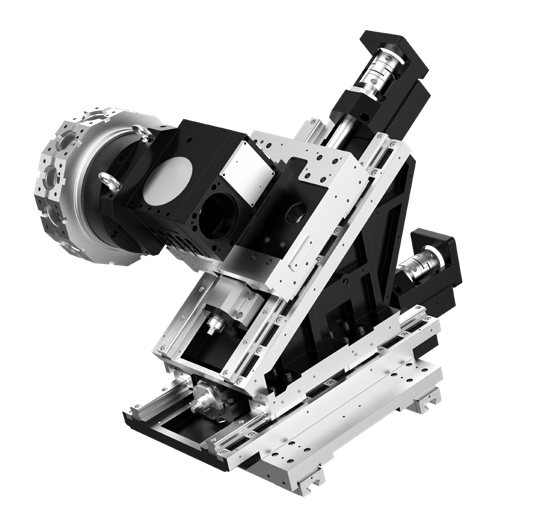

Interpolation Y Axis

Interpolation Y axis design
improves machine external
keyway processing for parts
which requires extra precision
Parameters

Working Range

Unit

Max. Swing Over Bed
Φ550mm
Max.Turning Length
700mm
Max.Turning Dia
Φ350mm
Max. Swing Over Carriage
Φ350mm
X/Y/Z/B Axis Travel
200/±50/760/710mm

Spindle

Unit

Spindle Hole Taper
A2-6/A2-5
Max. Passing Bar Dia.
Φ50/44mm
Spindle Speed Range
50-4500/50-5000rpm
Power

18/20kW-11/13.2kW

Feed

Unit

Rapid Feed Rate
30/10/30/30m/min

Chuck

Unit

Chuck size
8/6 inch

Turret

Unit

Standard Turret
12T（Driven）
Nearby Tool Select
Yes

Machine

Unit

Machine Dimension
3500*1750*1950mm
Machine Weight
5300kg
