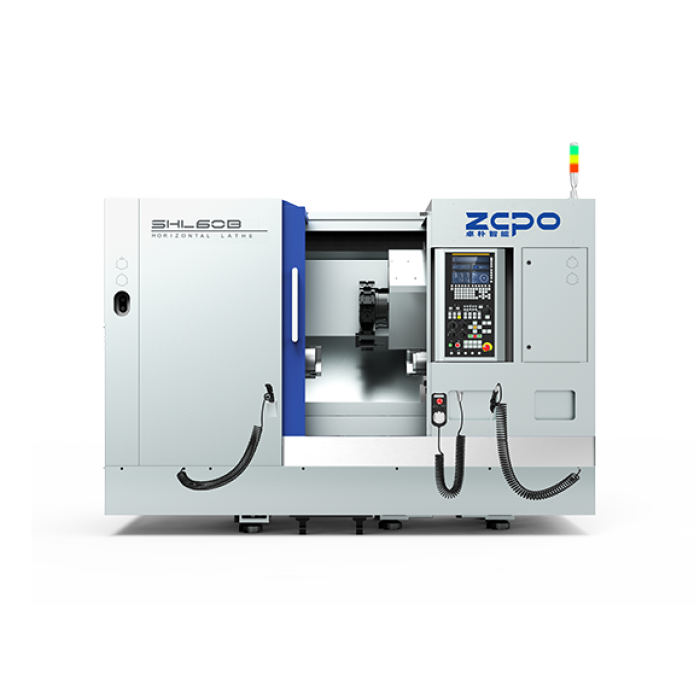

SHL60B-1200 High Capability Heavy cut
SHL60B-1200 High Capability Heavy cutSHL60B-1200 High Capability Heavy cut

SHL60B-1200 High Capability Heavy cut

High Rigidity、High Thermal Stability、High Application
CategoriesCNC Horizontal Lathe
Trademark/BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelSHL60B-1200
BrandZOPO Intelligent
CNCFanuc/Siemens/Mitsubishi/GNC/KND
Spindle Hole TaperA2-6
Control ModeSemi-closed loop
Update TimeNov 21,2025
Contact Now
Detail Information

SHL60B-1200

High Capability

High Rigidity, High Thermal Stability,

High Application

SHL60B

Φ610mm

Max.Swing Over Bed

1200mm

Max.Turning Length

Φ450mm

Max.Turning Dia

A2-6

Spindle Hole Taper

  • Model
  • Appearance
  • Characteristic
  • Parameters
  • Contact Us
Appearance
SHL60B
Characteristic
床鞍设计

Increased Span and Width Saddle


The hollow structure with a reasonable tendon type, has the characteristics of high rigidity and high stability, the best center symmetrical spindle design, the increased scraping contact area, the high -strength side pressure plate is locked, which has high rigidity and high thermal stability.

Horizontal Stepped Guideway Bed


To provide a reliable foundation for lathes, high rigidity, high precision, and high stability.
阶梯导轨床身
Parameters

Working Range

Unit

Max. Swing Over Bed
Φ610mm
Max.Turning Length
1200mm
Max.Turning Dia
Φ450mm
Max. Swing Over Carriage
400mm
X/Z Axis Travel
240/1210mm

Spindle

Unit

Spindle Hole Taper
A2-6
Max. Passing Bar Dia.
Φ50mm
Spindle Speed Range
50-4200rpm
Power
11/15kW
Standard Chuck Dia.
8'' inch

Feed

Unit

Rapid Feed Rate
30/30m/min

Tailstock

Unit

Tailstock Spindle Taper
5#

Turret

Unit

Standard Turret
12T（Servo）
Nearby Tool Select
Yes

Machine

Unit

Machine Dimension
3800*1700*1865mm
Machine Weight
5500kg
