Detail Information
Vertical
Lathe

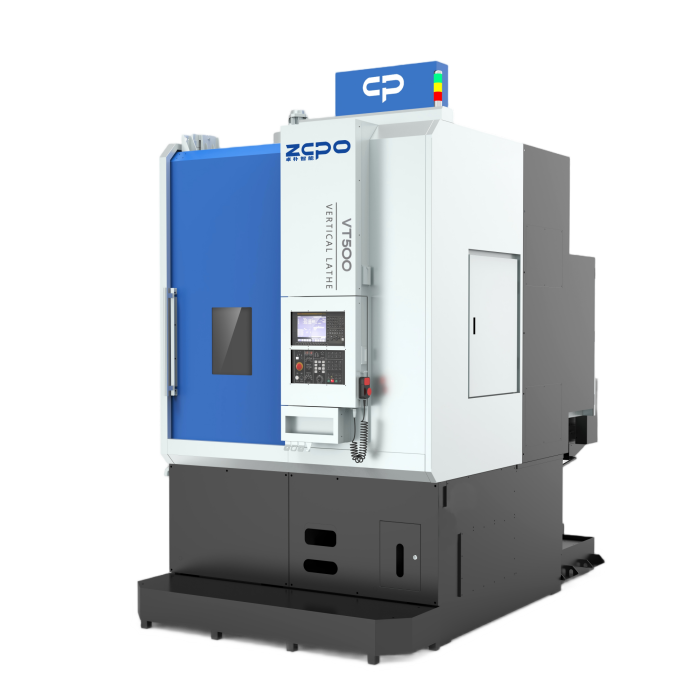

VT500
High Rigidity
Heavy cutting
Φ610mm
Max.Swing Over Bed
460mm
Max.Turning Length
Φ500mm
Max.Turning Dia
A2-8
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic
Wear-resistant castings：
The machine bed designed through FEM (Finite Element Analysis) ensures the optimal structure and achieves high stability of the equipment.
Heavy Duty Large Span Servo Turret
One-piece casting design with greater span and higher center height.
Heavy-loaded High-rigidity Spindle
The combination of high-rigidity double-row tapered roller bearings (NSK) and angular contact ball bearings (NSK) ensures the rigidity and stability of the spindle during processing, can achieve heavy loads, and avoid thermal displacement of the spindle after long-term operation.
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ610 mm
- Max.Turning Length
- 460 mm
- Max.Turning Dia
- Φ500 mm
- Max. Swing Over Carriage
- Φ510 mm
- X/Z Axis Travel
- 270/485 mm
Spindle
Unit
- Spindle Hole Taper
- A2-8
- Max. Passing Bar Dia.
- Φ90 mm
- Spindle Speed Range
- 50-3000 rpm
- Power
- 18.5/22 kW
- Standard Chuck Dia.
- 12'' inch
Machine
Unit
- Machine Dimension
- 1500*2265*3210 mm
- Machine Weight
- 6000 kg
