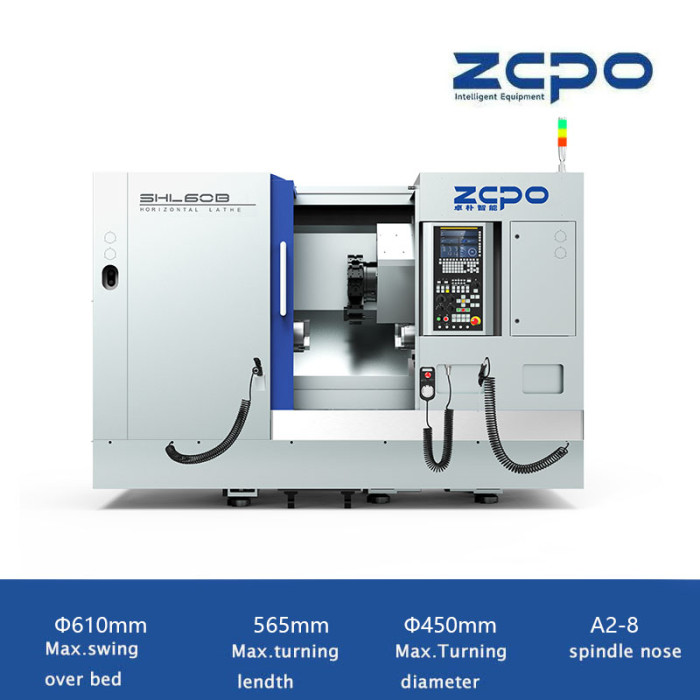

SHL60B High Capability Heavy cut
High Rigidity、High Thermal Stability、High Application
Detail Information
SHL60B
High Capability
High Rigidity, High Thermal Stability,
High Application
Φ610mm
Max.Swing Over Bed
565mm
Max.Turning Length
Φ450mm
Max.Turning Dia
A2-6
Spindle Hole Taper
- Model
- Appearance
- Characteristic
- Parameters
- Contact Us
Appearance
Characteristic
Increased Span and Width Saddle
The hollow structure with a reasonable tendon type, has the characteristics of high rigidity and high stability, the best center symmetrical spindle design, the increased scraping contact area, the high -strength side pressure plate is locked, which has high rigidity and high thermal stability.
Horizontal Stepped Guideway Bed
To provide a reliable foundation for lathes, high rigidity, high precision, and high stability.
Parameters
Working Range
Unit
- Max. Swing Over Bed
- Φ610mm
- Max.Turning Length
- 565mm
- Max.Turning Dia
- Φ450mm
- Max. Swing Over Carriage
- Φ400mm
- X/Z Axis Travel
- 240/610mm
Spindle
Unit
- Spindle Hole Taper
- A2-6
- Max. Passing Bar Dia.
- Φ50mm
- Spindle Speed Range
- 50-4200rpm
- Power
- 11/15kW
- Standard Chuck Dia.
- 8'' inch
Feed
Unit
- Rapid Feed Rate
- 30/30m/min
Tailstock
Unit
- Tailstock Spindle Taper
- 5#
Turret
Unit
- Standard Turret
- 12T（Servo）
- Nearby Tool Select
- Yes
Machine
Unit
- Machine Dimension
- 2950*1700*1865mm
- Machine Weight
- 4700kg
