Vertical VS Horizontal Machining Center: How to Make the Right Choice
How to Make the Right Choice
When investing in a CNC machining center, one of the most fundamental decisions is choosing between a Vertical Machining Center (VMC) and a Horizontal Machining Center (HMC). While both are essential pillars of modern manufacturing, they differ significantly in structure and application. Selecting the right one is pivotal for optimizing production efficiency, ensuring quality, and maximizing your return on investment
Structural Characteristics

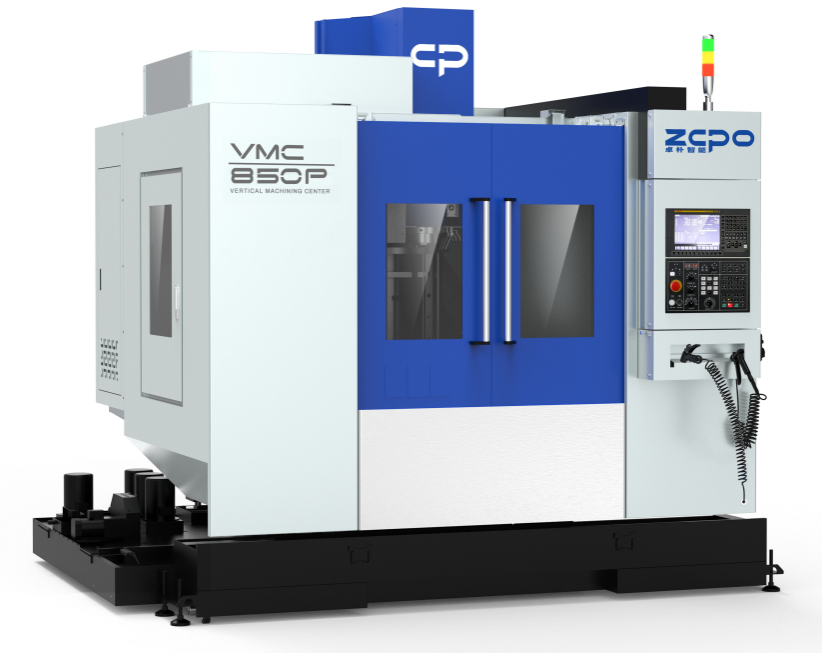

Vertical Machining Center
A VMC features a spindle with a vertical axis orientation, perpendicular to the worktable. This configuration is ideally suited for machining plate-type, disc-type, molds, and small, complex shell parts. VMCs excel at operations such as milling, boring, drilling, and tapping.
Horizontal Machining Center
An HMC is characterized by a spindle with a horizontal axis, parallel to the worktable. These machines are typically equipped with three linear axes and one or two rotary axes, enabling complex movements and multi-sided machining in a single setup. This makes them exceptionally capable for drilling, milling, cutting, and tapping, with a particular advantage in machining box-type and large, bulky components.
.Application Fields
Vertical Machining Center
The VMC is a highly versatile machine. It is not only capable of handling small, intricate, and complex parts but can also be used for larger components. Its common applications span across various industries, including automotive manufacturing, electronics, communication equipment, medical devices, and the production of carbide tools.
Horizontal Machining Center
As an efficient and high-precision CNC solution, the HMC finds its place in demanding industrial sectors ranging from aerospace to medical equipment manufacturing. Its ability to handle heavy cuts and complex parts with high efficiency provides robust support for the advancement of modern manufacturing
Key Advantages
Vertical Machining Center
Ease of Use:
Workpiece setup is straightforward and intuitive, offering excellent visibility of the cutting process, which simplifies operation and program debugging.
Cost-Effectiveness: The simpler structure translates to easier maintenance and a lower initial investment cost.
Effective Cooling: Cutting fluid is delivered directly to the tool-workpiece interface for improved cooling and chip flushing.
Horizontal Machining Center
Superior Chip Evacuation: Chips fall away from the workpiece naturally, preventing re-cutting and ensuring better surface finishes, especially in deep cavity machining.
High Productivity: Ideal for large and complex structural parts, they often allow for multi-face machining in a single clamping, drastically reducing cycle times.
Heavy-Duty Capability: The robust structure is designed to meet high-precision and high-efficiency machining requirements for tough materials.
Summary
In summary, the Vertical Machining Center is the go-to choice for precision, high-speed machining of parts where the primary geometry is on a single face. Its concentrated cutting force and operational simplicity deliver high precision and efficiency. The Horizontal Machining Center, on the other hand, is a powerhouse for complex, boxy components requiring multi-sided machining. It offers unparalleled efficiency, high accuracy, and a wide processing range for heavier and more complex production tasks.
Still unsure which machine is the optimal choice for your specific needs?
Welcome to contact our technical expert team—ZOPO. We will provide you with a free, professional consultation and tailor a solution based on your specific workpiece and production requirements.
