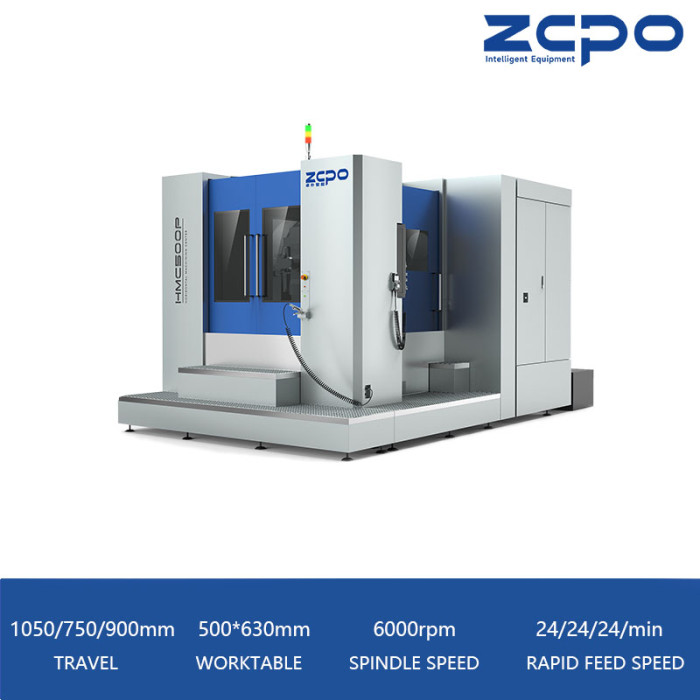

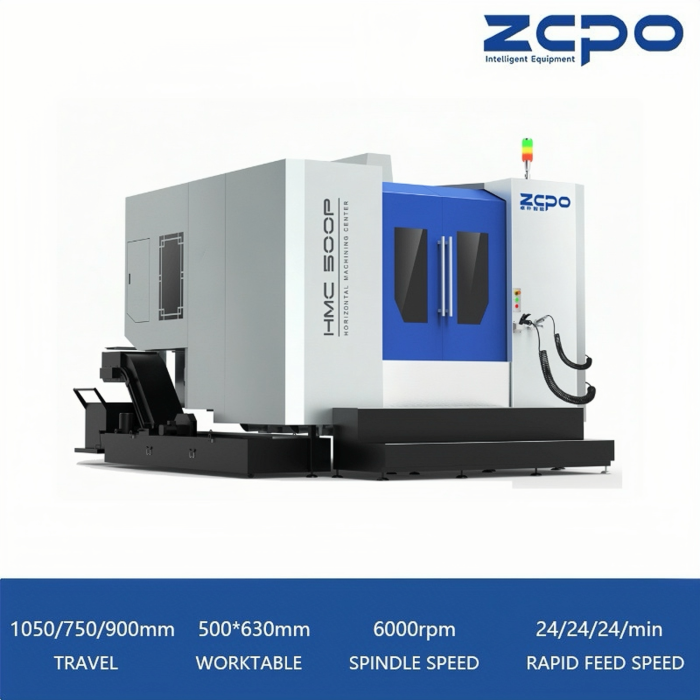

HMC500P Inverted T type Double worktable
HMC500P Inverted T type Double worktableHMC500P Inverted T type Double worktableHMC500P Inverted T type Double worktable

HMC500P Inverted T type Double worktable

Inverted T type horizontal center machining, Ideal choice for big batch automation processing lines
CategoriesInverted T Type
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelHMC500P
BRANDZOPO CNC
CNCFANUC/SIEMENS/MITSUBISHI
SPINDLEBELT SPINDLE
CONTROLSEMI-CLOSED LOOP CONTROL
Update TimeDec 11,2024
Detail Information

HMC500P

INVERTED T TYPE             DOUBLE WORKTABLE

Ideal choice for big batch automation processing lines

HMC63

1050/750/900mm

X/Y/Z axis travel

500x630mm

Worktable size

6000rpm

Spindle speed

24/24/24m/min

Rapid feed speed

  • Model
  • Appearance
  • Characteristics
  • Parameters
  • Contact Us

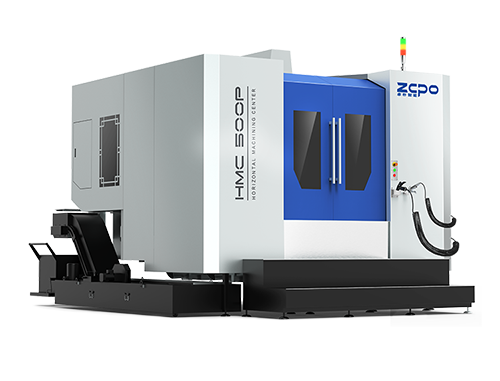

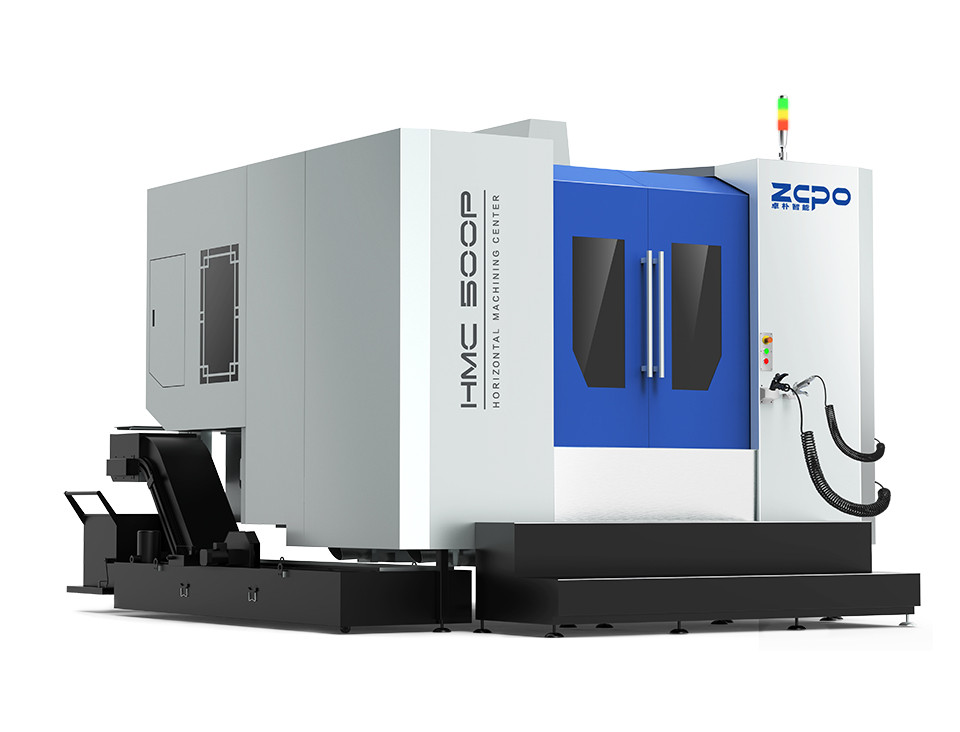

Appearance
HMC63
Characteristics
正T结构

Machine structure


“┻” shape and column moving structure to afford high rigidity and travel speed;
All the machine parts adopted finite element analysis.
Standard with two pallets, which can improve the processing efficiency.




Spindle

BT50 high tension spindle.
Broaching force 1800kgf (17640N).
Less prone to vibration during processing.

High precision double nut ball screw


Guaranteed heavy cutting.
Ensure machining accuracy.
Extend the service life of the lead screw
3 axes rapid feed speed: 24/24/24m/min


High rigidity, high precision


Low noise roller type linear guideway.
Ensure high stability.
丝杆
应用

Man-machine interaction


Vertical stainless steel armor protection design, Better chip removal.

Combined with steeply sloped chip flutes, reduce manual cleanup time.
Parameters

Working range

Unit

X/Y/Z axis travel
1050/750/900mm
Distance from spindle center to table surface
0-750mm
Distance from spinlde nose to table surface
130-1030mm

Worktable

Unit

Worktable size
500*630mm
Workpiece clamping type

24xM16
Rotary diameter of workpiece
Φ950
Max. load bearing of worktable
600kg

Spindle

Unit

Spindle hole taper
BT50
Spindle power
15/18.5KW
Max. spindle speed
6000rpm

Feed

Unit

Max. feed speed
6000mm/min
Rapid feed speed
24/24/24m/min

Tool magzine

Unit

Tool magzine capacity
24T
Tool changing time
5.5S

Accuracy

Unit

Positioning accuracy
0.01mm
Re-positioning accuracy
0.006mm
B axis positioning accuracy
10''
B axis repositioning accuracy
5''

Machine

Unit

Machine dimension
5800*3200*2700mm
Machine weight
14000kg
