ZOPO SE series vertical machining center: The best choice for pan-aluminum processing, high-precision molds, and parts processing
CategoriesSE Series - Efficiency Models
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelSED1165
BRANDZOPO
CNCFANUC/SIEMENS/MITSUBISHI
SPINDLEDIRECT SPINDLE
CONTROLSEMI-CLOSED LOOP CONTROL
Update TimeDec 10,2024
Detail Information

SED1165

Efficiency model

 The best choice for pan-aluminum processing, high-precision molds, and parts processing

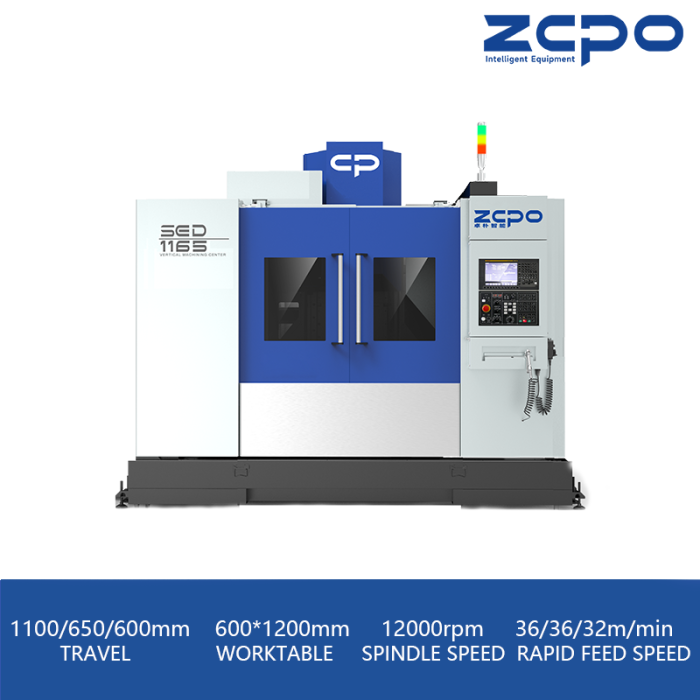

SED1165渲染图

1100/650/600mm

X/Y/Z axis travel

600×1200mm

Worktable size

12000rpm

Spindle speed

36/36/32m/min

Rapid feed speed

  • Model
  • Appearance
  • Charasteristics
  • Parameters
  • Contact Us
Appearance
SED1165
Charasteristics
高刚性高精度结构设计

High rigidity and high precision structural design


  • After FEA, the integral bed with reinforcement is made of dense baked cast iron casting, which has better rigidity in the same size machine tool.
  • The bed and saddle are designed with triangular stabilizing structure, which strengthens the rigidity of the main load-bearing parts, thus ensuring the stability of accuracy.
  • Spindle box structure, while doing lightweight design, combined with FEA, to enhance the rigidity of the spindle box and dynamic response capability.
  • The lightweight design of the moving parts further improves the dynamic response speed of the machine tool.


  • Direct spindle


  • Direct spindle reduces vibration and noise compared to belt spindle, resulting in improved machining performance and a better working environment.
  • Higher productivity is realized by reducing tool change times and improving acceleration/deceleration times for all axis feed systems. Superior efficiency and accuracy for small hole machining, short-stroke acceleration/deceleration machining, and machining of curved surface corners with small line segments, etc.
  • 直联式主轴

    Easier to use and more powerful control system

    Relying on the in-depth collaboration between ZOPO engineers and CNC system companies, we continuously carry out secondary development based on standard CNC systems to create multifunctional and intelligent human-machine interfaces, creating a more efficient and convenient user experience for customers.

    • Selection of energy-efficient processing modes
    • Tool management function
    • Broken tool detection function
    • Troubleshooting guide function
    • Super powerful human-computer interaction interface.
    更易用更强大的控制系统
    加工应用能力

    Stronger processing applications

    SE series vertical machining centers have leading capabilities in the machining of non-ferrous metals. With high speed, high precision and flexible expansion space, it is the first choice for automated group line machining and is widely used in high-tech industries such as automotive parts, molds and aerospace.

    • Larger machining range
    • Higher machining stability
    • Faster dynamic response
    • Higher metal removal capability
    Parameters

    Working range

    Unit
    X/Y/Z axis travel
    1100/650/600mm
    Distance from column to spindle center
    697mm
    Distance from table surface to spindle nose
    120-720mm

    Worktable

    Unit
    Worktable size
    600x1200mm
    T-slot size
    5-18*100mm
    Max. load bearing of worktable
    800kg

    Spindle

    Unit
    Spindle hole taper
    BT40
    Main motor power
    11/15KW
    Spindle speed
    12000(direct)rpm

    Feed

    Unit
    Max. feed speed
    12000mm/min
    Rapid feed speed
    36/36/32m/min

    Tool magazine

    Unit
    Tool magazine capacity
    24T
    Tool change time
    2.5S

    Accuracy

    Unit
    Positioning accuracy
    0.008mm
    Re-positioning accuracy
    0.004mm

    Machine

    Unit
    Machine dimension
    3200*2985*2960mm
    Machine weight
    5500kg
