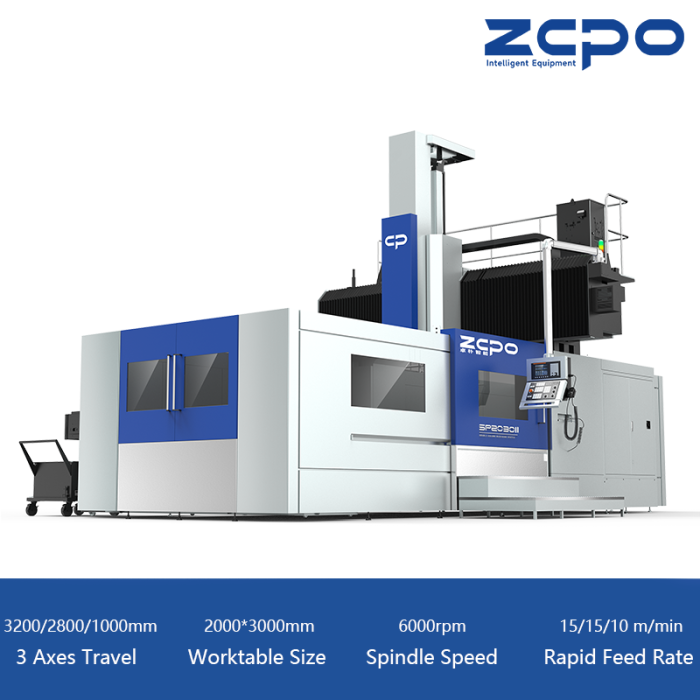

SP2030II Gearhead T type ram
SP2030II Gearhead T type ramSP2030II Gearhead T type ramSP2030II Gearhead T type ram

SP2030II Gearhead T type ram

II Upgraded t-type ram series:The first choice for large workpiece processing in industries such as large molds, mechanical parts, petroleum, aviation, rail transportation, etc.
CategoriesUpgraded T Type Ram Series
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelSP2030II
BRANDZOPO INTELLIGENT
SYSTEMFANUC/SIEMENS/MITSUBISHI
SPINDLEGEARHEAD
CONTROL WAYSemi-closed loop control
Update TimeDec 11,2024
Detail Information

SP2030II

II Upgraded T-type ram series

The first choice for large workpiece processing in industries such as large molds, mechanical parts, petroleum, aviation, rail transportation, etc.

SP2030II

3200/2800/1000mm

X/Y/Z axis travel

2000x3000mm

Worktable size

6000rpm

Spindle speed

15/15/10m/min

Rapid feed speed

  • Model
  • Appearance
  • Characteristics
  • Parameters
  • Contact Us
Appearance
SP2030II
Characteristics
II优越系列 T型滑枕1

Serialized and modular design


  • ZOPO II superior series T-type slide adopts advanced gantry design concept, combined with FEA finite element analysis, which effectively reduces the deformation of machine during processing, while improving processing accuracy and precision retention.
  • The full range of modular designs provides customers with more configuration options.
  • II优越系列 T型滑枕2
  • The product types are rich and the series are complete to meet the processing needs of different industries; it is suitable for various materials such as aluminum alloy, cast iron, steel, etc.
  • The overall external protection design is ergonomic, user-friendly, easy to operate and maintain, and has a good waterproof and anti-chip optimization design effect.
  • 大跨距 大行程 高稳定性结构设计

    Large span, long travel, high stability structural design


    All castings are made of high-strength gray cast iron with vibration absorption ability, and are aged to ensure stability. The reinforcing ribs are well designed to have excellent bending resistance to ensure the stability of the machine.
    • Ram:The double balance bars are symmetrically distributed on both sides to improve the precision of the moving parts of the ram.
    • Worktable:The worktable is hollowed out, the T-slot spacing on the table is 200mm, and the moving parts are lightweight, which improves the responsiveness of the machine during dynamic processes.
    • Machine body:The one-piece casting body and the larger span of the body rails effectively enhance the load-bearing capacity of the worktable.
    • Beam:The guideways on the crossbeam and saddle joint surfaces are distributed vertically and orthogonally to improve the overall rigidity and precision stability of the machine.
    • Two column distance:The full range of two column distance and Y travel are designed to maximize the range of machine, and can be freely equipped with a variety of accessory milling heads; effectively improving the processing capacity of the machine.

    Easier to use and more powerful control system


    Relying on the in-depth collaboration between ZOPO software development engineers and CNC system companies, we continuously carry out secondary development based on standard CNC systems to create multi-functional and intelligent human-machine interfaces, creating a more efficient and convenient user experience for customers.
    • Energy-efficient processing mode selection
    • Tool management function
    • Broken blade detection function
    • Troubleshooting guide function
    • Super strong human-computer interaction interface
    更易用更强大的控制系统
    Parameters

    Working range

    Unit

    X/Y/Z axis travel
    3200/2800/1000mm
    Distance between two columns
    2800mm
    Distance from table surface to spindle nose
    220-1220mm

    Worktable

    Unit

    Worktable size
    2000x3000mm
    T-slot size
    9-22*200mm
    Max. load bearing of worktable
    12000kg

    Spindle

    Unit

    Spindle hole taper
    BT50
    Main motor power
    15/18.5KW
    Spindle speed
    6000(Gearhead)rpm

    Feed

    Unit

    Max. feed speed
    8000mm/min
    Rapid feed rate
    15/15/10m/min

    Accuracy

    Unit

    Positioning accuracy
    0.025/0.022/.0016mm
    Re-positioning accuracy
    0.014/0.012/0.008mm

    Machine

    Unit

    Machine dimension
    8800*6600*5500mm
    Machine weight
    35500kg
