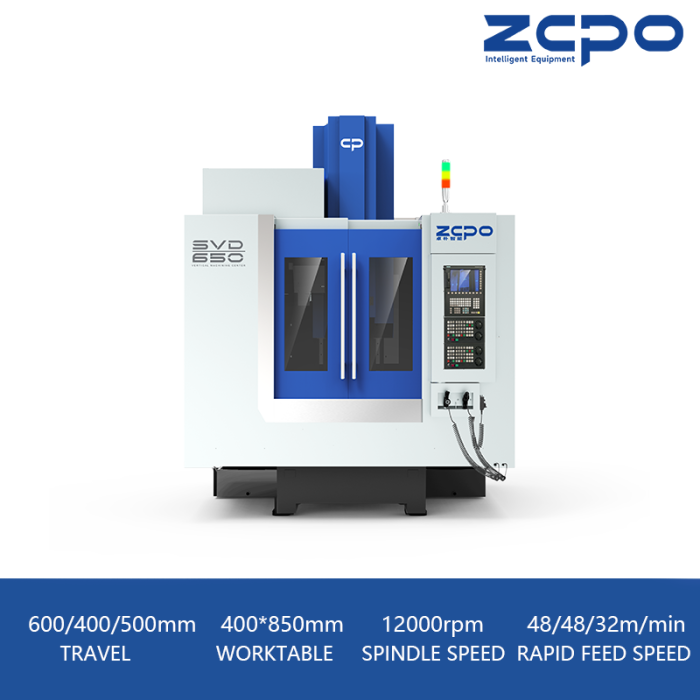

SVD650 Direct spindle
SV Series: a new upgraded vertical machining center, the best choice for machining performance and machining range in the same class
Categories | SV Series - Excellent Models |
---|---|
Brand | ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM |
Model | SVD650 |
BRAND | ZOPOCNC |
CNC | FANUC/SIEMENS/MITSUBISHI |
SPINDLE | DIRECT SPINDLE |
CONTROL | SEMI-CLOSED LOOP CONTROL |
Update Time | Dec 10,2024 |
Detail Information
SVD650
High speed and high efficiency model
The best choice for processing performance and processing range in the same level
650/400/500mm
X/Y/Z axis travel
400×850mm
Worktable size
12000rpm
Spindle speed
48/48/32m/min
Rapid feed speed
- Model
- Appearance
- Charasteristics
- Parameters
- Contact Us
Appearance
Charasteristics
Stable and reliable bed structure
- The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine tool.
- The unique cross-section design of the base component after finite element analysis and the reasonable distribution of internal reinforcement ribs give it higher load-bearing rigidity among products of the same specifications.
- The three-axis transmission seat and tail end bracket adopt an integrated casting design, eliminating the traditional split and shim adjustment mechanism, greatly improving the accuracy and stability of the machine tools three-axis transmission.
Closed spindle box
The spindle box adopts a closed box structure, which increases the contact size with the column guideway and adopts a lightweight design as a whole. In addition, the short nose spindle is standard, which improves the Z-axis positioning accuracy and spindle processing stability during the machine tool processing.
Direct spindle
Stable and reliable tool changing system
Parameters
Working range
Unit
- X/Y/Z axis travel
- 650/400/500mm
- Distance from column to spindle center
- 451mm
- Distance from table surface to spindle nose
- 100-600mm
Worktable
Unit
- Worktable size
- 400x850mm
- T-slot size
- 3-18*100mm
- Max. load bearing of worktable
- 400kg
Spindle
Unit
- Spindle hole taper
- BT40
- Main motor power
- 7.5/11KW
- Spindle speed
- 12000(direct)rpm
Feed
Unit
- Max. feed speed
- 12000mm/min
- Rapid feed speed
- 48/48/32m/min
Tool magazine
Unit
- Tool magazine capacity
- 20T
- Tool change time
- 2.5S
Accuracy
Unit
- Positioning accuracy
- 0.008mm
- Re-positioning accuracy
- 0.004mm
Machine
Unit
- Machine dimension
- 2110*2320*2750mm
- Machine weight
- 4100kg
