SP2250 Gear head T type ram
SP2250 Gear head T type ramSP2250 Gear head T type ramSP2250 Gear head T type ram

SP2250 Gear head T type ram

ZOPO Classic T type ram double column machining center:The first choice for processing small molds, mechanical parts, petroleum, aviation, rail transportation and other industries
CategoriesClassic T Type Ram Series
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelSP2250
BrandZOPOCNC
CNC systemFANUC/SIEMENS/MITSUBISHI
SpindleGearhead
ControlSemi-closed loop control
Update TimeDec 11,2024
Detail Information

SP2250

Classic T type ram series

The first choice for processing small molds, mechanical parts, petroleum, aviation, rail transportation and other industries

SP2250

5200/2250/1000mm

TRAVEL

2000x5000mm

WORKTABLE SIZE

6000rpm

SPINDLE SPEED

10/10/10m/min

RAPID FEED SPEED

  • Model
  • Appearance
  • Characteristics
  • Parameters
  • Contact Us

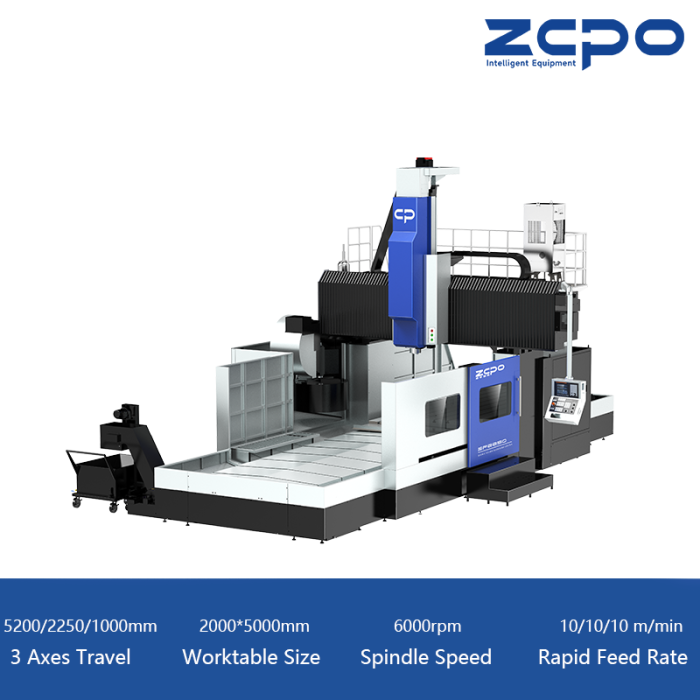

Appearance
SP2250
Characteristics
I经典系列T型滑枕1

Serialized and modular design


  • ZOPO classic T type ram series double column machining center adopts advanced design concept, combined with Finite Element Analysis(FEA), which can effectively reduce the deformation of the machine during machining, and improve the machining accuracy and accuracy retention at the same time.
  • Modular design provides customers with more configuration options.
  • I经典系列T型滑枕2
  • The products are rich in variety and complete series to meet the processing needs of different industries; suitable for aluminum alloy, cast iron, steel and other materials.
  • The overall appearance design easy the operation and maintenance after comprehensive study of ergonomics , especially optimized design of waterproof and chip removal system.
  • 高稳定、高精度结构

    High precision and high stability structural design

    All castings are made of high-strength gray cast iron with vibration absorption ability, and are aged to ensure stability. The reinforcing ribs are well designed to have excellent bending resistance to ensure the stability of the machine tool.
    • Ram:Optimal central symmetrical spindle box design; hard rail with extra-large cross-section and high rigidity; overall rigidity increased by 20%.
    • Worktable:The worktable is hollowed out, and the moving parts are lightweight, which improves the response speed of the worktable.
    • Machine body:One-piece casting bed and internal reinforcement rib design ensure stability and high rigidity; simplify assembly process, reduce assembly errors caused by personnel, and improve machine tool stability.
    • Beam:The optimal stepped beam and saddle design shifts the overall center of gravity of the spindle box backwards, increasing the machining rigidity.

    Easier to use and more powerful control system


    Relying on the in-depth collaboration between ZOPO engineers and CNC system companies, we continuously carry out secondary development based on standard CNC systems to create multifunctional and intelligent human-machine interfaces, creating a more efficient and convenient user experience for customers.
    • Selection of energy-efficient processing modes
    • Tool management function
    • Broken tool detection function
    • Troubleshooting guide function
    • Super powerful human-computer interaction interface
    更易用更强大的控制系统
    Parameters

    Working range

    Unit

    X/Y/Z axis travel
    5200/2250/1000mm
    Distance between two columns
    2400mm
    Distance from table surface to spindle nose
    220-1220mm

    Worktable

    Unit

    Worktable size
    2000x5000mm
    T-slot size
    11-22*160mm
    Max. load bearing of worktable
    18000kg

    Spindle

    Unit

    Spindle hole taper
    BT50
    Main motor power
    22/26(wide area)KW
    Spindle speed
    6000(Gear head)rpm

    Feed

    Unit

    Max. feed speed
    8000mm/min
    Rapid feed rate
    10/10/10m/min

    Accuracy

    Unit

    Positioning accuracy
    0.034/0.020/0.020mm
    Re-positioning accuracy
    0.014/0.012/0.008mm

    Machine

    Unit

    Machine dimension
    12400*6200*5500mm
    Machine weight
    41000kg
