SP2030FII Direct gear box Square ram
SP2030FII Direct gear box Square ramSP2030FII Direct gear box Square ramSP2030FII Direct gear box Square ram

SP2030FII Direct gear box Square ram

ZOPO Upgraded square ram double column machining center: The first choice for large molds, mechanical parts, oil, aviation, rail transportation and other industries with large workpieces and heavy processing.
CategoriesUpgraded Square Ram Series
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelSP2030FII
BRANDZOPOCNC
CNCFANUC/SIEMENS/MITSUBISHI
SPINDLEDirect gear box Square ram
CONTROLSEMI-CLOSED LOOP CONTROL
Update TimeDec 11,2024
Detail Information

SP2030FII

Upgraded Square ram series

The first choice for large molds, mechanical parts, oil, aviation, rail transportation and other industries with large workpieces and heavy processing.

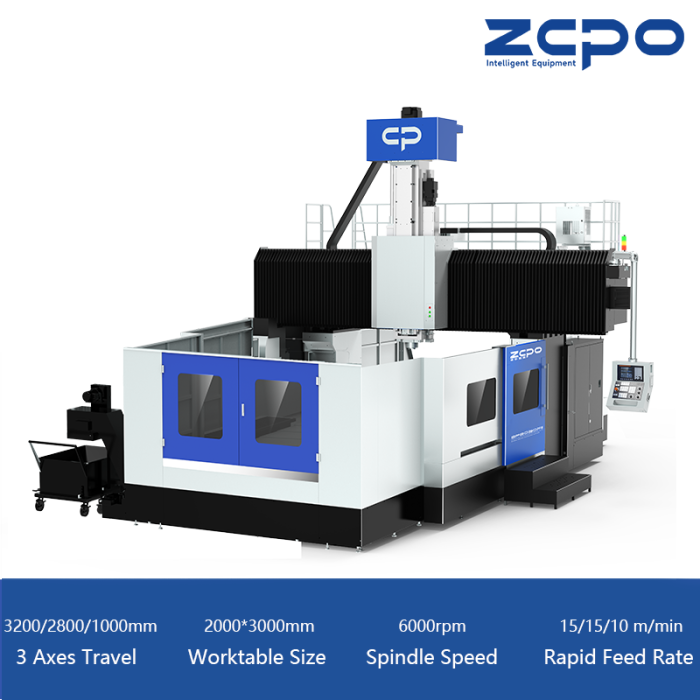

SP2030FII

3200/2800/1000mm

TRAVEL

2000x3000mm

WORKTABLE

6000rpm

SPINDLE SPEED

15/15/10m/min

RAPID FEED RATE

  • Model
  • Appearance
  • Characteristics
  • Parameters
  • Contact Us
Appearance
SP2030FII
Characteristics
II优越系列方滑枕1

Serialized and modular design


  • ZOPO Upgraded Square ram series double column machining center adopts advanced design concept, combined with Finite Element Analysis(FEA), which can effectively reduce the deformation of the machine during machining, and improve the machining accuracy and accuracy retention at the same time.
  • II优越系列方滑枕2
  • The products are rich in variety and complete series to meet the processing needs of different industries; suitable for aluminum alloy, cast iron, steel and other materials.
  • The overall appearance design easy the operation and maintenance after comprehensive study of ergonomics , especially optimized design of waterproof and chip removal system.
  • Modular design provides customers with more configuration options.
  • 大跨距 大行程 大扭矩 高刚性结构

    Large span, large travel, high torque, high rigidity structural design


    All castings are made of high-strength gray cast iron with vibration absorption ability, and are aged to ensure stability. The reinforcing ribs are well designed to have excellent bending resistance to ensure the stability of the machine tool.
    • High torque:Imported spindle unit, and using imported carbon fiber coupling to directly connect the motor and gearbox, with a maximum output torque of 1000 N.M.
    • Large travel:X axis largest travel 24m to meet the needs of long workpieces
    • Large span:Full range of span and Y axis travel maximization design, can be freely equipped with a variety of attachment milling head; effectively increase the range of machining capacity of the machine.
    • High torque:Brand-new casting structure, beam sliding saddle bonding surface guideway adopts vertical orthogonal distribution, to improve the overall rigidity and precision stability of the machine tool.

    Easier to use and more powerful control system


    Relying on the in-depth collaboration between ZOPO engineers and CNC system companies, we continuously carry out secondary development based on standard CNC systems to create multifunctional and intelligent human-machine interfaces, creating a more efficient and convenient user experience for customers.
    • Selection of energy-efficient processing modes
    • Tool management function
    • Broken tool detection function
    • Troubleshooting guide function
    • Super powerful human-computer interaction interface
    更易用更强大的控制系统
    Parameters

    Working range

    Unit
    X/Y/Z axis travel
    3200/2800/1000mm
    Distance between two columns
    2800mm
    Distance from table surface to spindle nose
    260-1260mm

    Worktable

    Unit
    Worktable size
    2000x3000mm
    T-slot size
    9-22*200mm
    Max. load bearing of worktable
    12000kg

    Spindle

    Unit
    Spindle hole taper
    BT50
    Main motor power
    22/26KW
    Spindle speed
    6000rpm

    Feed

    Unit
    Max. feed speed
    8000mm/min
    Rapid feed rate
    15/15/10m/min

    Accuracy

    Unit
    Positioning accuracy
    0.025/0.022/0.016mm
    Re-positioning accuracy
    0.014/0.012/0.008mm

    Machine

    Unit
    Machine dimension
    8800*6600*5500mm
    Machine weight
    39000kg
