SP2550FII Direct gear box Square ram
ZOPO Upgraded square ram double column machining center: The first choice for large molds, mechanical parts, oil, aviation, rail transportation and other industries with large workpieces and heavy processing.
Categories | Upgraded Square Ram Series |
---|---|
Brand | ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM |
Model | SP2550FII |
Brand | ZOPOCNC |
CNC | FANUC/SIEMENS/MITSUBISHI |
SPINDLE | Direct gear box Square ram |
CONTROL | SEMI-CLOSED LOOP CONTROL |
Update Time | Dec 10,2024 |
Detail Information
SP2550FII
Upgraded Square ram series
The first choice for large molds, mechanical parts, oil, aviation, rail transportation and other industries with large workpieces and heavy processing.
5200/3600/1000mm
TRAVEL
2500x5000mm
WORKTABLE
6000rpm
SPINDLE SPEED
10/15/10m/min
RAPID FEED RATE
- Model
- Appearance
- Characteristics
- Parameters
- Contact Us

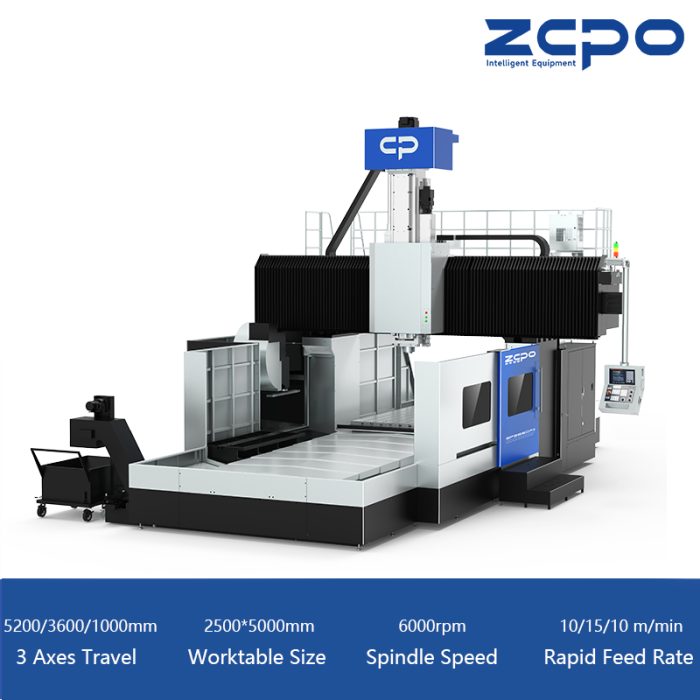

Appearance
Characteristics
Serialized and modular design
Large span, large travel, high torque, high rigidity structural design
All castings are made of high-strength gray cast iron with vibration absorption ability, and are aged to ensure stability. The reinforcing ribs are well designed to have excellent bending resistance to ensure the stability of the machine tool.
- High torque:Imported spindle unit, and using imported carbon fiber coupling to directly connect the motor and gearbox, with a maximum output torque of 1000 N.M.
- Large travel:X axis largest travel 24m to meet the needs of long workpieces
- Large span:Full range of span and Y axis travel maximization design, can be freely equipped with a variety of attachment milling head; effectively increase the range of machining capacity of the machine.
- High torque:Brand-new casting structure, beam sliding saddle bonding surface guideway adopts vertical orthogonal distribution, to improve the overall rigidity and precision stability of the machine tool.
Easier to use and more powerful control system
Relying on the in-depth collaboration between ZOPO engineers and CNC system companies, we continuously carry out secondary development based on standard CNC systems to create multifunctional and intelligent human-machine interfaces, creating a more efficient and convenient user experience for customers.
- Selection of energy-efficient processing modes
- Tool management function
- Broken tool detection function
- Troubleshooting guide function
- Super powerful human-computer interaction interface
Parameters
Working range
Unit
- X/Y/Z axis travel
- 5200/3600/1000mm
- Distance between two columns
- 3600mm
- Distance from table surface to spindle nose
- 260-1260mm
Worktable
Unit
- Worktable size
- 2500x5000mm
- T-slot size
- 11-28*200mm
- Max. load bearing of worktable
- 22000kg
Spindle
Unit
- Spindle hole taper
- BT50
- Main motor power
- 22/26KW
- Spindle speed
- 6000rpm
Feed
Unit
- Max. feed speed
- 8000mm/min
- Rapid feed rate
- 10/15/10m/min
Accuracy
Unit
- Positioning accuracy
- 0.034/0.030/0.016mm
- Re-positioning accuracy
- 0.014/0.018/0.008mm
Machine
Unit
- Machine dimension
- 12800*7400*5700mm
- Machine weight
- 51500kg
