ZOPO SE series vertical machining center: The best choice for pan-aluminum processing, high-precision molds, and parts processing
CategoriesSE Series - Efficiency Models
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelSEB855
BRANDZOPOCNC
CNCFANUC/SIEMENS/MITSUBISHI
SPINDLEBELT SPINDLE
CONTROLSEMI-CLOSED LOOP CONTROL
Update TimeDec 10,2024
Detail Information

SEB855

Efficiency model

The best choice for pan-aluminum processing, high-precision molds, and parts processing

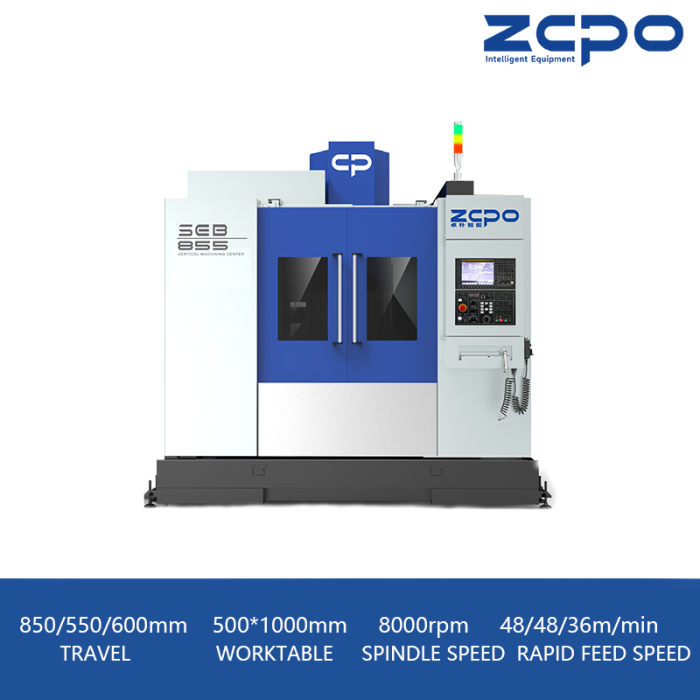

SEB855渲染图

850/550/600mm

X/Y/Z axis travel

500×1000mm

Worktable size

8000rpm

Spindle speed

48/48/36m/min

Rapid feed speed

  • Model
  • Appearance
  • Charasteristics
  • Parameters
  • Contact Us
Appearance
SEB855
Charasteristics
高刚性、高精度结构

High rigidity and high precision structural design

  • After FEA, the integral bed with reinforcement is made of dense baked cast iron casting, which has better rigidity in the same size machine tool.
  • The bed and saddle are designed with triangular stabilizing structure, which strengthens the rigidity of the main load-bearing parts, thus ensuring the stability of accuracy.
  • Spindle box structure, while doing lightweight design, combined with FEA, to enhance the rigidity of the spindle box and dynamic response capability.
  • The lightweight design of the moving parts further improves the dynamic response speed of the machine tool.

Easier to use and more powerful control system

Relying on the in-depth collaboration between ZOPO engineers and CNC system companies, we continuously carry out secondary development based on standard CNC systems to create multifunctional and intelligent human-machine interfaces, creating a more efficient and convenient user experience for customers.

  • Selection of energy-efficient processing modes
  • Tool management function
  • Troubleshooting guide function
  • Super powerful human-computer interaction interface.
更易用更强大的控制系统
加工应用能力

Stronger processing applications

SE series vertical machining centers have leading capabilities in the machining of non-ferrous metals. With high speed, high precision and flexible expansion space, it is the first choice for automated group line machining and is widely used in high-tech industries such as automotive parts, molds and aerospace.

  • Larger machining range
  • Higher machining stability
  • Faster dynamic response
  • Higher metal removal capability
Parameters

Working range

Unit
X/Y/Z axis travel
850/550/600mm
Distance from column to spindle center
597mm
Distance from table surface to spindle nose
120-720mm

Worktable

Unit
Worktable size
500x1000mm
T-slot size
5-18*100mm
Max. load bearing of worktable
600kg

Spindle

Unit
Spindle hole taper
BT40
Main motor power
11/15KW
Spindle speed
8000(belt)rpm

Feed

Unit
Max. feed speed
12000mm/min
Rapid feed speed
48/48/36m/min

Tool magazine

Unit
Tool magazine capacity
24T
Tool change time
2.5S

Accuracy

Unit
Positioning accuracy
0.008mm
Re-positioning accuracy
0.004mm

Machine

Unit
Machine dimension
2650*2700*2850mm
Machine weight
4800kg
