SVD1570 Direct Spindle
SVD1570 Direct SpindleSVD1570 Direct SpindleSVD1570 Direct Spindle

SVD1570 Direct Spindle

Industry machine: long travel, high speed, best choice for processing large-size aluminum products
CategoriesIndustry Featured Machine
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelSVD1570
BRANDZOPO INTELLIGENT
CNC systemFANUC/SIEMENS/MITSUBISHI
SPINDLEDIRECT SPINDLE
CONTROLSemi-closed loop control
Update TimeDec 10,2024
Detail Information

SVD1570

Pan-aluminum processing

Long travel, high speed, best choice for processing large-size aluminum products

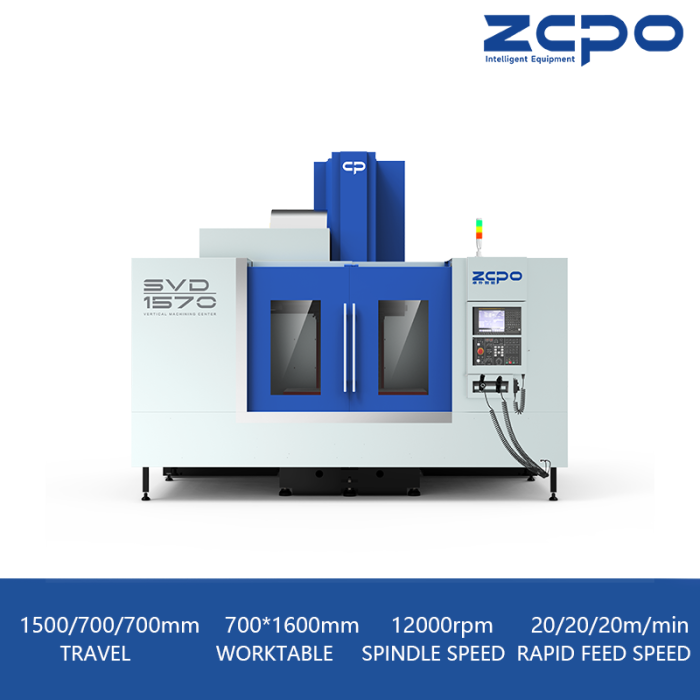

SVD1570

1500/700/700mm

X/Y/Z axis travel

700×1600mm

Worktable size

12000rpm

Spindle speed

20/20/20m/min

Rapid feed speed

  • Model
  • Appearance
  • Charasteristics
  • Parameters
  • Contact Us
Appearance
SVD1570
Charasteristics
稳定可靠结构

Stable and reliable structure


  • The Y-axis uses four 45mm high-rigidity and high-load roller linear guideways and heavy-duty 8-slide blocks to enhance rigidity and load-bearing capacity.
  •  Convenient and efficient chip handling: The machine is equipped with two screws as standard to effectively discharge the chips generated during processing, with high conveying efficiency.

Closed spindle box


The spindle box adopts a closed box structure, the contact size with the column guideway is enlarged, and the overall lightweight design. The short nose spindle is standard, which improves the Z-axis positioning accuracy and spindle processing stability during the machine tool processing.

封闭主轴箱
稳定可靠换刀装置

Stable and reliable tool changing device


  • The SV series is equipped with a disc manipulator tool changer as standard, achieving higher tool change efficiency and shortening non-cutting time.
  • The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine.
  •  The standard fully enclosed tool chamber design eliminates the impact of cutting fluid and iron chips on the tool holder during continuous processing, effectively improves the stability of tool changing action, reduces maintenance costs, and greatly improves productivity.
  • The large-capacity tool magazine can clamp multiple tools at one time, and there is no need to add tools when processing workpieces, which greatly saves cutting time.
  • Parameters

    Working range

    Unit

    X/Y/Z axis travel
    1500/700/700mm
    Distance from column to spindle center
    766mm
    Distance from table surface to spindle nose
    140-840mm

    Worktable

    Unit

    Worktable size
    700x1600mm
    T-slot size
    5-18*125mm
    Max. load bearing of worktable
    1000kg

    Spindle

    Unit

    Spindle hole taper
    BT40
    Main motor power
    11/15KW
    Spindle speed
    12000(Direct)rpm

    Feed

    Unit

    Max. feed speed
    12000mm/min
    Rapid feed speed
    20/20/20m/min

    Tool magazine

    Unit

    Tool magazine capacity
    24T
    Tool change time
    2.5S

    Accuracy

    Unit

    Positioning accuracy
    0.01mm
    Re-positioning accuracy
    0.005mm

    Machine

    Unit

    Machine dimension
    3950*3300*3320mm
    Machine weight
    9800kg
