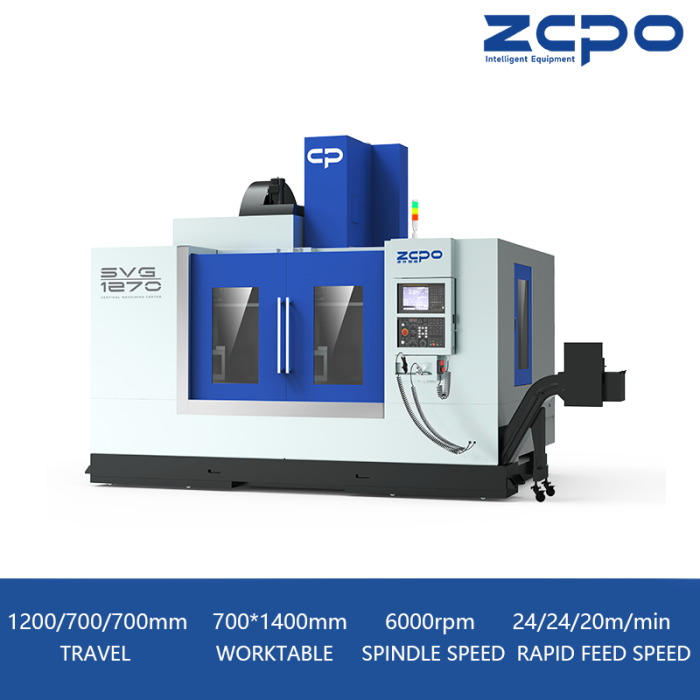

SVG1270

High rigidity and high efficiency model

The best choice for processing performance and processing range in the same level

SEB855渲染图

1200/700/700mm

X/Y/Z axis travel

700×1400mm

Worktable size

6000rpm

Spindle speed

24/24/20m/min

Rapid feed speed

  • Model
  • Appearance
  • Charasteristics
  • Parameters
  • Contact Us
Appearance
SVG1270
Charasteristics
稳定可靠结构

Higher stability and high rigidity bed structure


  • The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine.
  •  The unique cross-section design of the base component after finite element analysis and the reasonable distribution of internal reinforcement ribs give it higher load-bearing rigidity among products of the same specifications.
  •  The three-axis transmission seat and tail end bracket adopt an integrated casting design, eliminating the traditional split and shim adjustment mechanism, greatly improving the accuracy and stability of the machine tool's three-axis transmission.
  • The Y-axis uses four 45mm high-rigidity and high-load roller linear guideways and heavy-duty 8-slide blocks to enhance rigidity and load-bearing capacity.
  •  Convenient and efficient chip handling: The machine tool is equipped with two screw rows as standard to effectively discharge the iron chips generated during processing, with high conveying efficiency.

Closed spindle box


The spindle box adopts a closed box structure, the contact size with the column guideway is enlarged, and the overall lightweight design. The short nose spindle is standard, which improves the Z-axis positioning accuracy and spindle processing stability during the machine processing.

封闭主轴箱
高刚性主轴

High rigidity spindle


The SVG series uses built-in gear transmission, and the 2-stage gear-driven spindle uses cylindrical roller bearings to ensure strong torque at low speed and stable speed at high speed to meet customers' diverse processing needs. The maximum torque at low speed can reach 1042Nm.

Stable and reliable tool changing device


  • The SV series is equipped with a disc manipulator tool changer as standard, achieving higher tool change efficiency and shortening non-cutting time.
  • The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine.
  •  The standard fully enclosed tool chamber design eliminates the impact of cutting fluid and iron chips on the tool holder during continuous processing, effectively improves the stability of tool changing action, reduces maintenance costs, and greatly improves productivity.
  • The large-capacity tool magazine can clamp multiple tools at one time, and there is no need to add tools when processing workpieces, which greatly saves cutting time.
  • 换刀装置
    Parameters

    Working range

    Unit

    X/Y/Z axis travel
    1200/700/700mm
    Distance from column to spindle center
    766mm
    Distance from table surface to spindle nose
    150-850mm

    Worktable

    Unit

    Worktable size
    700x1400mm
    T-slot size
    5-18*125mm
    Max. load bearing of worktable
    1000kg

    Spindle

    Unit

    Spindle hole taper
    BT50
    Main motor power
    11/15(Wide area)KW
    Spindle speed
    6000(Gearhead)rpm

    Feed

    Unit

    Max. feed speed
    12000mm/min
    Rapid feed speed
    24/24/20m/min

    Tool magazine

    Unit

    Tool magazine capacity
    24T
    Tool change time
    3.5S

    Accuracy

    Unit

    Positioning accuracy
    0.01mm
    Re-positioning accuracy
    0.005mm

    Machine

    Unit

    Machine dimension
    4350*2955*3320mm
    Machine weight
    9700kg
