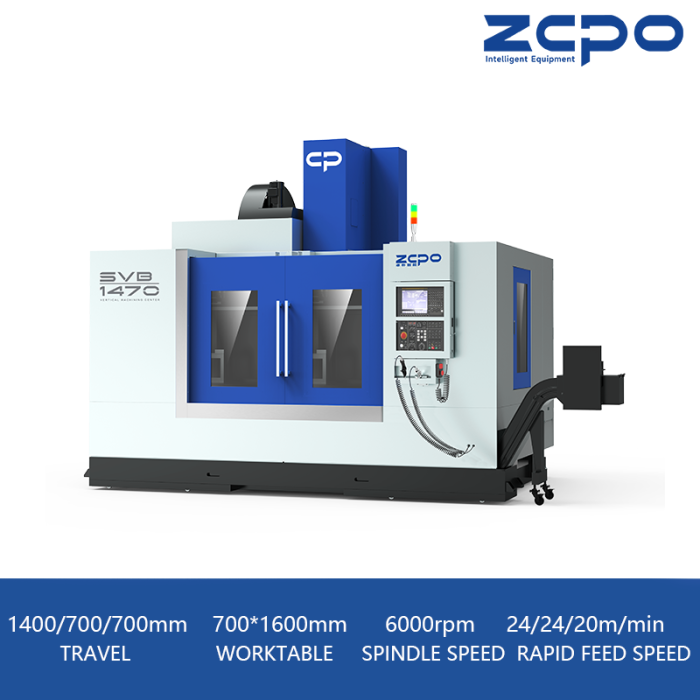

SVB1470 Belt spindle
SV Series: a new upgraded vertical machining center, the best choice for machining performance and machining range in the same class
Categories | SV Series - Excellent Models |
---|---|
Brand | ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM |
Model | SVB1470 |
BRAND | ZOPOCNC |
CNC | FANUC/SIEMENS/MITSUBISHI |
SPINDLE | BELT SPINDLE |
CONTROL | SEMI-CLOSED LOOP CONTROL |
Update Time | Dec 11,2024 |
Detail Information
SVB1470
High rigidity and high precision model
The best choice for processing performance and processing range in the same level
1400/700/700mm
X/Y/Z axis travel
700×1600mm
Worktable size
6000rpm
Spindle speed
24/24/20m/min
Rapid feed speed
- Model
- Appearance
- Charasteristics
- Parameters
- Contact Us
Appearance
Charasteristics
Stable and reliable structure
- The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine tool.
- The unique cross-section design of the base component after finite element analysis and the reasonable distribution of internal reinforcement ribs give it higher load-bearing rigidity among products of the same specifications.
- The three-axis transmission seat and tail end bracket adopt an integrated casting design, eliminating the traditional split and shim adjustment mechanism, greatly improving the accuracy and stability of the machine tools three-axis transmission.
Closed spindle box
The spindle box adopts a closed box structure, which increases the contact size with the column guideway and adopts a lightweight design as a whole. In addition, the short nose spindle is standard, which improves the Z-axis positioning accuracy and spindle processing stability during the machine tool processing.
Stable and reliable tool changing system
Parameters
Working range
Unit
- X/Y/Z axis travel
- 1400/700/700mm
- Distance from column to spindle center
- 766mm
- Distance from table surface to spindle nose
- 150-850mm
Worktable
Unit
- Worktable size
- 700x1600mm
- T-slot size
- 5-18*125mm
- Max. load bearing of worktable
- 1100kg
Spindle
Unit
- Spindle hole taper
- BT50
- Main motor power
- 15/18.5(wide area)KW
- Spindle speed
- 6000(belt)rpm
Feed
Unit
- Max. feed speed
- 12000mm/min
- Rapid feed speed
- 24/24/20m/min
Tool magazine
Unit
- Tool magazine capacity
- 24T
- Tool change time
- 3.5S
Accuracy
Unit
- Positioning accuracy
- 0.01mm
- Re-positioning accuracy
- 0.005mm
Machine
Unit
- Machine dimension
- 4850*2955*3320mm
- Machine weight
- 10000kg
