SP1840II Gearhead T type ram
II Upgraded t-type ram series:The first choice for large workpiece processing in industries such as large molds, mechanical parts, petroleum, aviation, rail transportation, etc.
Categories | Upgraded T Type Ram Series |
---|---|
Brand | ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM |
Model | SP1840II |
BRAND | ZOPO INTELLIGENT |
SYSTEM | FANUC/SIEMENS/MITSUBISHI |
SPINDLE | GEARHEAD |
CONTROL WAY | Semi-closed loop control |
Update Time | Dec 10,2024 |
Detail Information
SP1840II
II Upgraded T-type ram series
The first choice for large workpiece processing in industries such as large molds, mechanical parts, petroleum, aviation, rail transportation, etc.
4200/2400/1000mm
X/Y/Z axis travel
4000x1800mm
Worktable size
6000rpm
Spindle speed
15/15/10m/min
Rapid feed speed
- Model
- Appearance
- Characteristics
- Parameters
- Contact Us

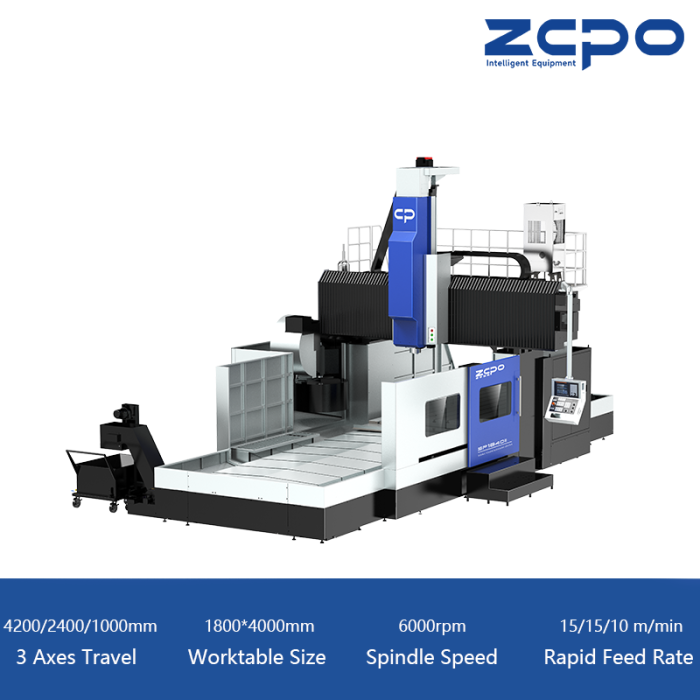

Appearance
Characteristics
Serialized and modular design
Large span, long travel, high stability structural design
All castings are made of high-strength gray cast iron with vibration absorption ability, and are aged to ensure stability. The reinforcing ribs are well designed to have excellent bending resistance to ensure the stability of the machine.
- Ram:The double balance bars are symmetrically distributed on both sides to improve the precision of the moving parts of the ram.
- Worktable:The worktable is hollowed out, the T-slot spacing on the table is 200mm, and the moving parts are lightweight, which improves the responsiveness of the machine during dynamic processes.
- Machine body:The one-piece casting body and the larger span of the body rails effectively enhance the load-bearing capacity of the worktable.
- Beam:The guideways on the crossbeam and saddle joint surfaces are distributed vertically and orthogonally to improve the overall rigidity and precision stability of the machine.
- Two column distance:The full range of two column distance and Y travel are designed to maximize the range of machine, and can be freely equipped with a variety of accessory milling heads; effectively improving the processing capacity of the machine.
Easier to use and more powerful control system
Relying on the in-depth collaboration between ZOPO software development engineers and CNC system companies, we continuously carry out secondary development based on standard CNC systems to create multi-functional and intelligent human-machine interfaces, creating a more efficient and convenient user experience for customers.
- Energy-efficient processing mode selection
- Tool management function
- Broken blade detection function
- Troubleshooting guide function
- Super strong human-computer interaction interface
Parameters
Working range
Unit
- X/Y/Z axis travel
- 4200/2400/1000mm
- Distance between two columns
- 2400mm
- Distance from table surface to spindle nose
- 220-1220mm
Worktable
Unit
- Worktable size
- 4000x1800mm
- T-slot size
- 9-22*200mm
- Max. load bearing of worktable
- 14000kg
Spindle
Unit
- Spindle hole taper
- BT50
- Main motor power
- 15/18.5KW
- Spindle speed
- 6000(Gearhead)rpm
Feed
Unit
- Max. feed speed
- 8000mm/min
- Rapid feed rate
- 15/15/10m/min
Accuracy
Unit
- Positioning accuracy
- 0.03/0.02/0.016mm
- Re-positioning accuracy
- 0.014/0.012/0.008m
Machine
Unit
- Machine dimension
- 10800*3200*5500mm
- Machine weight
- 37500kg
