ZOPO VMC classic series: a product series with complete machine models, wide processing range, multiple optional configurations and the best cost-effectiveness.
CategoriesVMC Series - Classic Models
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelVMC855
brandzopocnc
cncFANUC/SIEMENS/MITSUBISHI
spindlebelt spindle
controlsemi-closed loop control
Update TimeDec 10,2024
Detail Information

VMC855

Classic model

The best choice for aluminum processing, high-precision molds and parts processing

VMC855

850/550/650mm

X/Y/Z axis travel

550×1000mm

Worktable size

8000rpm

Spindle speed

12/12/12m/min

Rapid feed speed

  • Model
  • Appearance
  • Charasteristics
  • Parameters
  • Contact Us

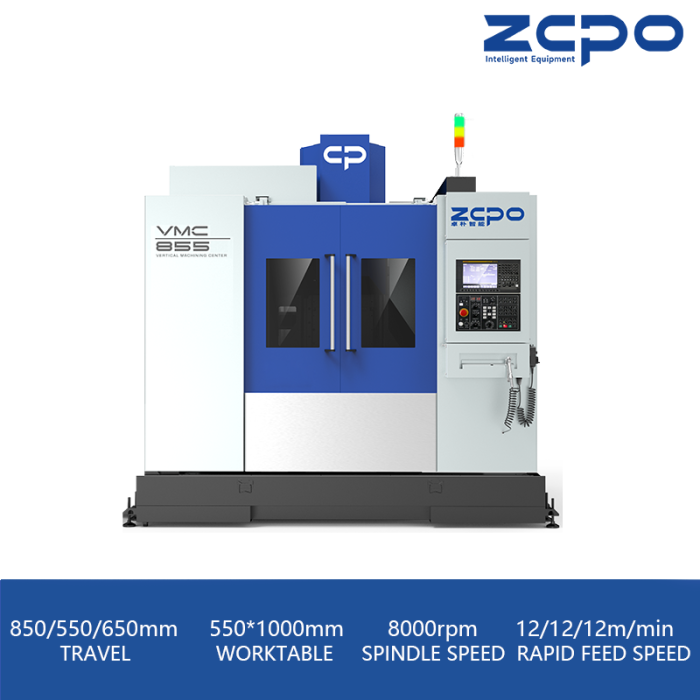

Appearance
VMC855
Charasteristics
高刚性、高稳定结构

High rigidity, high efficiency and high stability structural design

Hot sale 10000+ units Excellent overall performance, high cost performance



  • The unique arc-shaped base design after finite element analysis and the internal reinforcement rib layout provide better processing rigidity among machine tools of the same size.
  • The base adopts a large-span structure with two 45mm roller linear guideways, which provides the machine with very strong load-bearing capacity while meeting the high rigidity requirements during heavy cutting.

High performance spindle

  • The spindle box guideway is designed with a large cross-section and the structure is optimized to be the best among similar models. It is equipped with a Z-axis weightless structure to ensure the stability and accuracy of vertical high-speed positioning.
  • The Z-axis guideway span is larger than that of traditional models, which greatly improves the contact ratio between the spindle box and the column, ensuring high torque of the spindle during processing.
  • The short nose spindle ensures the cutting rigidity of the machine.
高性能主轴
加工应用能力

Superior processing capabilities

The VMC series machine tools with stable cutting performance are suitable for automotive parts, 3C industry, military industry, molds, sewing equipment and diversified product processing applications in the ever-changing market.

Parameters

Working range

Unit
X/Y/Z axis travel
850/550/650mm
Distance from column to spindle center
610mm
Distance from table surface to spindle nose
125-775mm

Worktable

Unit
Worktable size
550x1000mm
T-slot size
5-18*100mm
Max. load bearing of worktable
700kg

Spindle

Unit
Spindle hole taper
BT40
Main motor power
11/15KW
Spindle speed
8000(belt)rpm

Feed

Unit
Max. feed speed
12000mm/min
Rapid feed speed
12/12/12m/min

Tool magazine

Unit
Tool magazine capacity
24T
Tool change time
2.5S

Accuracy

Unit
Positioning accuracy
0.01mm
Re-positioning accuracy
0.005mm

Machine

Unit
Machine dimension
2700*2510*3000mm
Machine weight
6200kg
