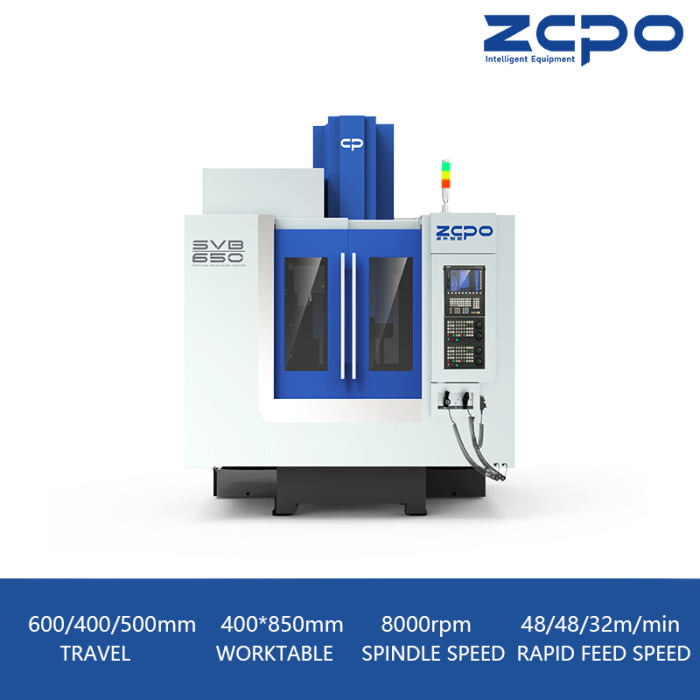

SVB650 Belt spindle

SV Series: a new upgraded vertical machining center, the best choice for machining performance and machining range in the same class
CategoriesSV Series - Excellent Models
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelSVB650
BRANDZOPOCNC
CNCFANUC/SIEMENS/MITSUBISHI
SPINDLEBELT SPINDLE
CONTROLSEMI-CLOSED LOOP CONTROL
Update TimeDec 10,2024
Detail Information

SVB650

High rigidity and high precision model

The best choice for processing performance and processing range in the same level

SVB650

650/400/500mm

X/Y/Z axis travel

400×850mm

Worktable size

8000rpm

Spindle speed

48/48/32m/min

Rapid feed speed

  • Model
  • Appearance
  • Charasteristics
  • Parameters
  • Contact Us
Appearance
SVB650
Charasteristics
稳定可靠结构

Stable and reliable structure


  • The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine tool.
  •  The unique cross-section design of the base component after finite element analysis and the reasonable distribution of internal reinforcement ribs give it higher load-bearing rigidity among products of the same specifications.
  •  The three-axis transmission seat and tail end bracket adopt an integrated casting design, eliminating the traditional split and shim adjustment mechanism, greatly improving the accuracy and stability of the machine tools three-axis transmission.

Closed spindle box


The spindle box adopts a closed box structure, which increases the contact size with the column guideway and adopts a lightweight design as a whole. In addition, the short nose spindle is standard, which improves the Z-axis positioning accuracy and spindle processing stability during the machine tool processing.

封闭式主轴箱
稳定可靠换刀装置

Stable and reliable tool changing system


  • The SV series is equipped with a disc manipulator tool changer as standard, achieving higher tool change efficiency and shortening non-cutting time.
  • The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine tool.
  •  The standard fully enclosed tool chamber design eliminates the impact of cutting fluid and iron chips on the tool holder during continuous processing, effectively improves the stability of tool changing action, reduces maintenance costs, and greatly improves productivity.
  • The large-capacity tool magazine can clamp multiple tools at one time, and there is no need to add tools when processing workpieces, which greatly saves cutting time.
  • Parameters

    Working range

    Unit

    X/Y/Z axis travel
    650/400/500mm
    Distance from column to spindle center
    451mm
    Distance from table surface to spindle nose
    100-600mm

    Worktable

    Unit

    Worktable size
    400x850mm
    T-slot size
    3-18*1000mm
    Max. load bearing of worktable
    400kg

    Spindle

    Unit

    Spindle hole taper
    BT40
    Main motor power
    7.5/11)KW
    Spindle speed
    8000(belt)rpm

    Feed

    Unit

    Max. feed speed
    12000mm/min
    Rapid feed speed
    48/48/32m/min

    Tool magazine

    Unit

    Tool magazine capacity
    20T
    Tool change time
    2.5S

    Accuracy

    Unit

    Positioning accuracy
    0.008mm
    Re-positioning accuracy
    0.004mm

    Machine

    Unit

    Machine dimension
    2110*2320*2750mm
    Machine weight
    4100kg
