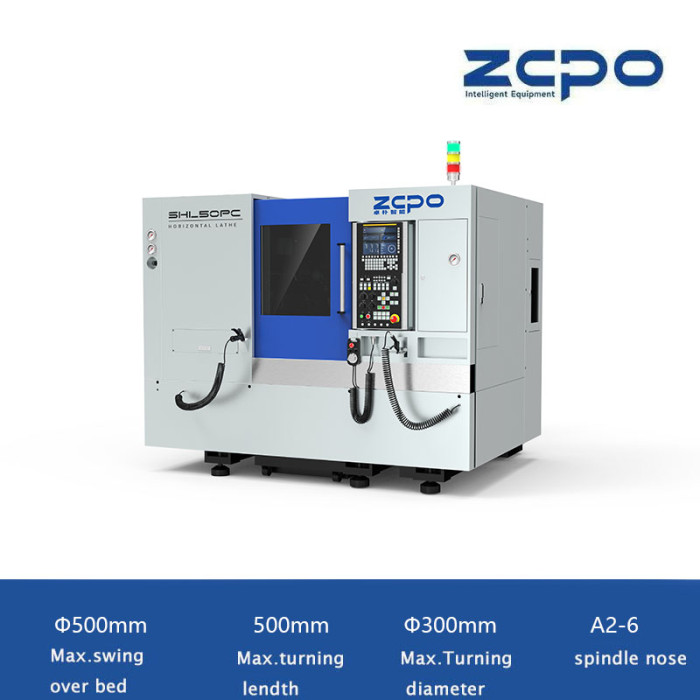

SHL50PC High Application Driven-Turret
SHL50PC High Application Driven-TurretSHL50PC High Application Driven-TurretSHL50PC High Application Driven-Turret

SHL50PC High Application Driven-Turret

Small floor area, Strong processing capability, Balancing rough and finish processing
CategoriesCNC Horizontal Lathe
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelSHL50PC
BrandZOPO Intelligent
CNCFanuc/Siemens/Mitsubishi/GNC/KND
Spindle Hole TaperA2-6
Control ModeSemi-closed loop
Update TimeDec 11,2024
Detail Information

SHL50PC

High Application

Small floor area, Strong processing capability, Balancing rough and finish processing

SHL50PC

Φ500mm

Max.Swing Over Bed

500mm

Max.Turning Length

Φ300mm

Max.Turning Dia

A2-6

Spindle Hole Taper

  • Model
  • Appearance
  • Characteristic
  • Parameters
  • Contact Us
Appearance
SHL50PC
Characteristic
30°斜床身

30°Inclined Machine Bed


30° Inclined machine bed,making the center of gravity of the bed lower, the rigidity higher, and the vibration generated during cutting smaller, it is more suitable for deep cutting. Thickened bed saddles are used to improve the deep cutting performance of the machine


Linear Guideway


Imported 35# ball linear guideway, with high feed accuracy, low friction resistance, good rigidity, high resistance to vibration and deformation, which can enable users to achieve high processing accuracy and improve the speed of rapid movement, achieving high production efficiency
直线导轨
内嵌主电机

Embedded Main Motor


The embedded main motor makes the bed more compact and occupies a smaller area without affecting the machining stroke. It can be equipped with a chip box, side row, or rear row.
Parameters

Working Range

Unit

Max. swing over bed
Φ500 mm
Max. turning length
500 mm
Max. turning diameter
Φ300 mm
Max. swing over carriage
Φ300 mm
X/Z travel
200/560 mm

Spindle

Unit

Spindle Hole Taper
A2-6
Max. Passing Bar Dia.
Φ50 mm
Spindle Speed Range
50-4500 mm
Power
11/15 kW
Standard Chuck Dia.
8'' inch

Feed

Unit

Rapid Feed Rate
30/30m/min

Tailstock

Unit

Tailstock Spindle Taper
5# T

Turret

Unit

Standard Turret
12(Driven)T
Nearby Tool Select
Yes

Machine

Unit

Machine Dimension
2275*1625*1825 mm
Machine Weight
3800 kg
