SHL50BC High Capability Driven-Turret
SHL50BC High Capability Driven-TurretSHL50BC High Capability Driven-TurretSHL50BC High Capability Driven-Turret

SHL50BC High Capability Driven-Turret

30 ° stepped rail bed,expansion capability,BMT45 Driven-Turret
CategoriesCNC Horizontal Lathe
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelSHL50BC
BrandZOPO Intelligent
CNCFanuc/Siemens/Mitsubishi/GNC/KND
Spindle Hole TaperA2-6
Control ModeSemi-closed loop
Update TimeDec 11,2024
Detail Information

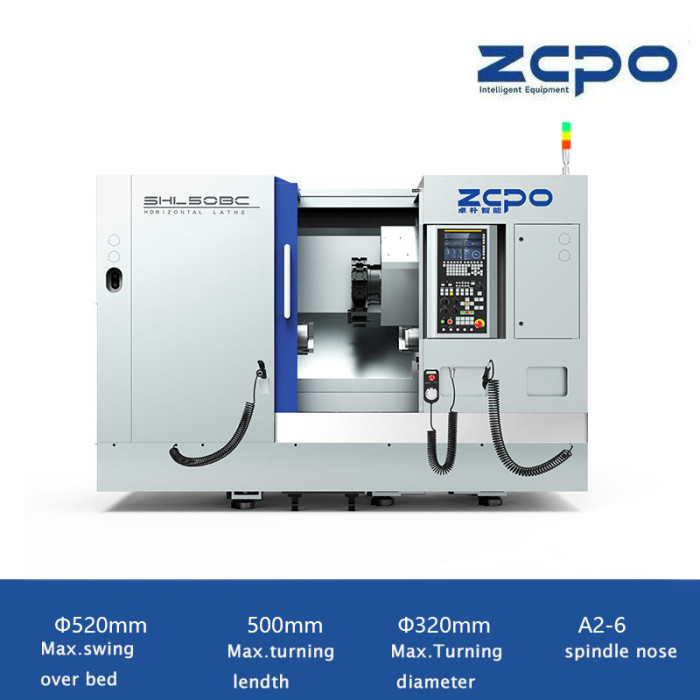

SHL50BC

High Capability

30 ° stepped rail bed,expansion capability,BMT45 Driven-Turret

SHL50BC

Φ520mm

Max.Swing Over Bed

500mm

Max.Turning Length

Φ320mm

Max.Turning Dia

A2-6

Spindle Hole Taper

  • Model
  • Appearance
  • Characteristic
  • Parameters
  • Contact Us
Appearance
SHL50BC
Characteristic
床鞍设计

Multi Function Integration


Integrate gang tools and milling/turning tools on one machine, reduces the times of transfers and clamping of workpieces between different machines, improves efficiency, and reduces costs.

High precision


Capable of processing parts with complex shapes and high precision requirements, ensuring the dimensional accuracy, shape accuracy, and surface quality of the parts.
高刚性伺服刀架
阶梯导轨床身

Multi-Axis


It usually has multiple coordinate axes, which can achieve multi axis linkage processing and complete the machining of complex spatial surfaces and irregular structures.
Parameters

Working Range

Unit

Max. Swing Over Bed
Φ520mm
Max.Turning Length
500mm
Max.Turning Dia
Φ320mm
Max. Swing Over Carriage
Φ320mm
X/Z Axis Travel
200/550mm

Spindle

Unit

Spindle Hole Taper
A2-6
Max. Passing Bar Dia.
Φ50mm
Spindle Speed Range
50-4500mm
Power
11/15mm
Standard Chuck Dia.
8'' inch

Feed

Unit

Rapid Feed Rate
30/30m/min

Tailstock

Unit

Tailstock Spindle Taper
5# T

Turret

Unit

Standard Turret
12(Driven)T
Nearby Tool Select
Yes

Machine

Unit

Machine Dimension
2502*1723*1753mm
Machine Weight
3800kg
