V11B Direct spindle
V11B Direct spindleV11B Direct spindleV11B Direct spindle

V11B Direct spindle

ZOPO VMC classic series: a product series with complete machine models, wide processing range, multiple optional configurations and the best cost-effectiveness.
CategoriesVMC Series - Classic Models
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelV11B
BRANDZOPOCNC
CNCFANUC/SIEMENS/MITSUBISH
SPINDLEDIRECT SPINDLE
CONTROLSEMI-CLOSED LOOP CONTROL
Update TimeDec 11,2024
Detail Information

V11B

High speed and high efficiency model

The best choice for aluminum processing, high-precision molds and parts processing

SEB855渲染图

1100/610/630mm

X/Y/Z axis travel

600×1200mm

Worktable size

12000rpm

Spindle speed

36/36/32m/min

Rapid feed speed

  • Model
  • Appearance
  • Charasteristics
  • Parameters
  • Contact Us

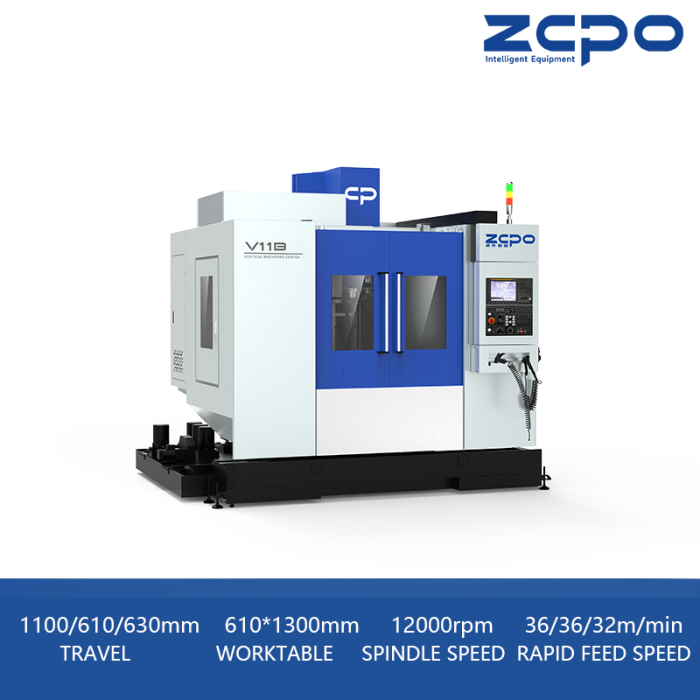

Appearance
V11B
Charasteristics
高刚性、高精度结构

High rigidity, high efficiency and high stability structural design

Hot sale 10000+ units

Excellent overall performance, high cost performance


  • The unique arc-shaped base design after finite element analysis and the internal reinforcement rib layout provide better processing rigidity among machine tools of the same size.
  • The base adopts a large-span structure with two 45mm roller linear guideways, which provides the machine with very strong load-bearing capacity while meeting the high rigidity requirements during heavy cutting.

Direct spindle

  • The integrated structure of the spindle box and motor seat reduces the cumulative error of the motor seat assembly
  •  Greatly improve processing efficiency and quality
  •  Extend tool life and reduce processing costs
直联主轴
加工应用能力

Superior processing capabilities

The V series machine tools with stable cutting performance are suitable for automotive parts, 3C industry, military industry, molds, sewing equipment and diversified product processing applications in the ever-changing market.

Parameters

Working range

Unit

X/Y/Z axis travel
1100/610/630mm
Distance from column to spindle center
667mm
Distance from table surface to spindle nose
120-750mm

Worktable

Unit

Worktable size
610x1300mm
T-slot size
5-18*100mm
Max. load bearing of worktable
900kg

Spindle

Unit

Spindle hole taper
BT40
Main motor power
11/15KW
Spindle speed
12000(direct)rpm

Feed

Unit

Max. feed speed
12000mm/min
Rapid feed speed
36/36/32m/min

Tool magazine

Unit

Tool magazine capacity
24T
Tool change time
2.5S

Accuracy

Unit

Positioning accuracy
0.008mm
Re-positioning accuracy
0.004mm

Machine

Unit

Machine dimension
3150*2300*2850mm
Machine weight
7000kg
