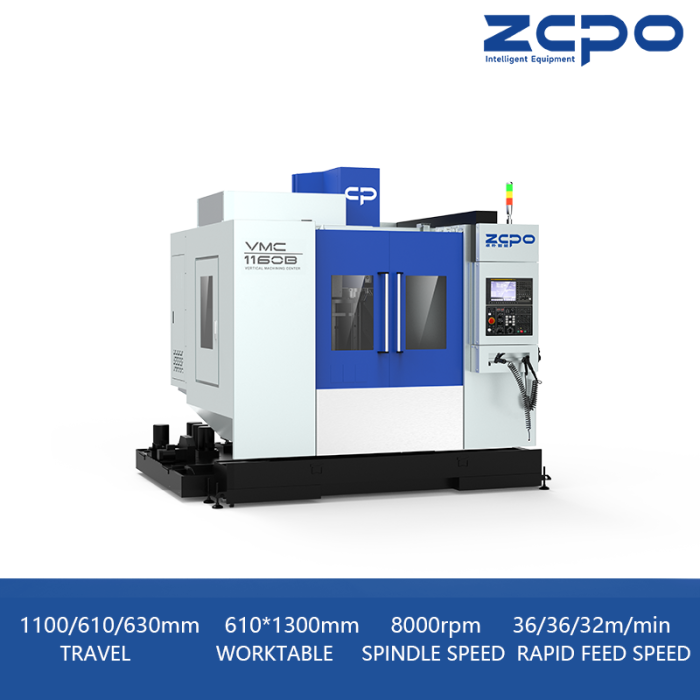

VMC1160B Belt spindle
VMC1160B Belt spindleVMC1160B Belt spindleVMC1160B Belt spindle

VMC1160B Belt spindle

ZOPO VMC classic series: a product series with complete machine models, wide processing range, multiple optional configurations and the best cost-effectiveness.
CategoriesVMC Series - Classic Models
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelVMC1160B
BRANDZOPOCNC
CNCFANUC/SIEMENS/MITSUBISHI
SPINDLEBELT SPINDLE
CONTROLSEMI-CLOSED LOOP CONTROL
Update TimeDec 10,2024
Detail Information

VMC1160B

High rigidity and high efficiency model

The best choice for aluminum processing, high-precision molds and parts processing

VMC1160B

1100/610/630mm

X/Y/Z axis travel

610×1300mm

Worktable size

8000rpm

Spindle speed

36/36/32m/min

Rapid feed speed

  • Model
  • Appearance
  • Charasteristics
  • Parameters
  • Contact Us
Appearance
VMC1160B
Charasteristics
高刚性结构

High rigidity, high efficiency and high stability structural design

Hot sale 10000+ units

Excellent overall performance, high cost performance


  • The unique arc-shaped base design after finite element analysis and the internal reinforcement rib layout provide better processing rigidity among machine tools of the same size.
  • The base adopts a large-span structure with two 45mm roller linear guideways, which provides the machine with very strong load-bearing capacity while meeting the high rigidity requirements during heavy cutting.

High performance spindle

  • The spindle box guideway is designed with a large cross-section and the structure is optimized to be the best among similar models. It is equipped with a Z-axis weightless structure to ensure the stability and accuracy of vertical high-speed positioning.
  • The Z-axis guideway span is larger than that of traditional models, which greatly improves the contact ratio between the spindle box and the column, ensuring high torque of the spindle during processing.
  • The short nose spindle ensures the cutting rigidity of the machine.
高性能主轴
加工应用能力

Superior processing capabilities

The VMC series machine tools with stable cutting performance are suitable for automotive parts, 3C industry, military industry, molds, sewing equipment and diversified product processing applications in the ever-changing market.

Parameters

Working range

Unit

X/Y/Z axis travel
1100/610/630mm
Distance from column to spindle center
667mm
Distance from table surface to spindle nose
110-740mm

Worktable

Unit

Worktable size
610x1300mm
T-slot size
5-18*100mm
Max. load bearing of worktable
900kg

Spindle

Unit

spindle hole taper
BT40
Main motor power
11/15(wide area)KW
Spindle speed
8000(belt)rpm

Feed

Unit

Max. feed speed
10000mm/min
Rapid feed speed
36/36/32m/min

Tool magazine

Unit

Tool magazine capacity
24T
Tool change time
2.5S

Accuracy

Unit

Positioning accuracy
0.008mm
Re-positioning accuracy
0.004mm

Machine

Unit

Machine dimension
3150*2700*2850mm
Machine weight
7000kg
