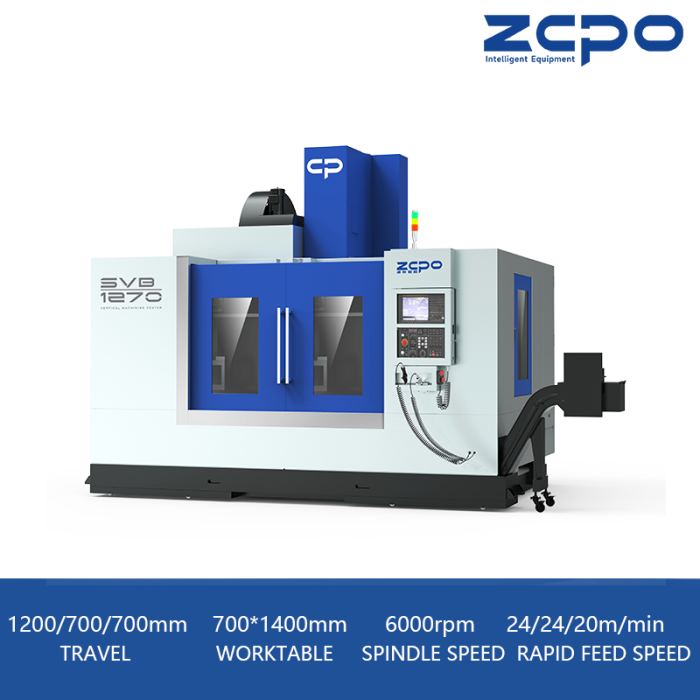

SVB1270 Belt spindle

SV Series: a new upgraded vertical machining center, the best choice for machining performance and machining range in the same class
CategoriesSV Series - Excellent Models
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelSVB1270
BRANDZOPOCNC
CNCFANUC/SIEMENS/MITSUBISHI
SPINDLEBELT SPINDLE
CONTROLSEMI-CLOSED LOOP CONTROL
Update TimeDec 11,2024
Detail Information

SVB1270

High rigidity and high precision model

The best choice for processing performance and processing range in the same level

SVB1270

1200/700/700mm

X/Y/Z axis travel

700×1400mm

Worktable size

6000rpm

Spindle speed

24/24/20m/min

Rapid feed speed

  • Model
  • Appearance
  • Charasteristics
  • Parameters
  • Contact Us
Appearance
SVB1270
Charasteristics
稳定可靠结构

Stable and reliable structure


  • The Y-axis uses four 45mm high-rigidity and high-load roller linear guideways and heavy-duty 8-slide blocks to enhance rigidity and load-bearing capacity.
  •  Convenient and efficient chip handling: The machine is equipped with two screws as standard to effectively discharge the chips generated during processing, with high conveying efficiency.

Closed spindle box


The spindle box adopts a closed box structure, which increases the contact size with the column guideway and adopts a lightweight design as a whole. In addition, the short nose spindle is standard, which improves the Z-axis positioning accuracy and spindle processing stability during the machine tool processing.

封闭主轴箱
稳定换刀装置

Stable and reliable tool changing system


  • The SV series is equipped with a disc manipulator tool changer as standard, achieving higher tool change efficiency and shortening non-cutting time.
  • The solid dense-baked casting and integral box-type bed and arched column structure improve the basic rigidity of the machine tool.
  •  The standard fully enclosed tool chamber design eliminates the impact of cutting fluid and iron chips on the tool holder during continuous processing, effectively improves the stability of tool changing action, reduces maintenance costs, and greatly improves productivity.
  • The large-capacity tool magazine can clamp multiple tools at one time, and there is no need to add tools when processing workpieces, which greatly saves cutting time.
  • Parameters

    Working range

    Unit

    X/Y/Z axis travel
    1200/700/700mm
    Distance from column to spindle center
    766mm
    Distance from table surface to spindle nose
    150-850mm

    Worktable

    Unit

    Worktable size
    700x1400mm
    T-slot size
    5-18*125mm
    Max. load bearing of worktable
    1000kg

    Spindle

    Unit

    Spindle hole taper
    BT50
    Main motor power
    15/18.5(wide area)KW
    Spindle speed
    6000(belt)rpm

    Feed

    Unit

    Max. feed speed
    12000mm/min
    Rapid feed speed
    24/24/20m/min

    Tool magazine

    Unit

    Tool magazine capacity
    24T
    Tool change time
    3.5S

    Accuracy

    Unit

    Positioning accuracy
    0.01mm
    Re-positioning accuracy
    0.005mm

    Machine

    Unit

    Machine dimension
    4350*2955*3320mm
    Machine weight
    9700kg
