X6036 horizontal milling arbour

Manual knee type machine, horizontal milling arbour, rigidity structure
CategoriesManual Milling Machine
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelX6036
BRANDZOPO CNC
CONTROLMANUAL
SPINDLEhorizontal milling arbour
Update TimeDec 10,2024
Detail Information

X6036

KNEE TYPE MILLING MACHINE

X6036

1020/300/410mm

X/Y/Z axis travel


360×1600mm

Worktable size


1500rpm

Spindle speed


2250/2250/844mm/min

Rapid feed speed

  • Model
  • Appearance
  • Characteristics
  • Parameters
  • Contact Us

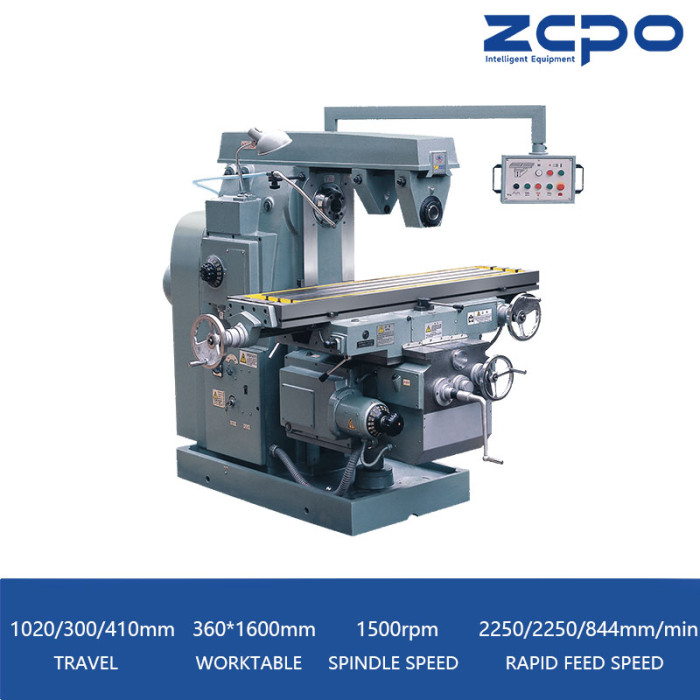

Appearance
X6036
Characteristics
结构钢性

Rigidity structure +Stability precision


This horizontal knee type milling machine has high rigidity structure and stable precision. .Three direction of guideways have adopted wear-resistant measuresment to maintain high accuracy and long life.
加工应用能力

Extensive Application


Mounted with rod, disc, angle, forming and face milling cutter, the machine can use for flat, bevel, angle, groove and edge processing. The machine can also be milling gears, reamers, spiral grooves, cams and drums instal with indexing accessories and others, which is widely used in machining industries.
Parameters

Working range


Unit

X/Y/Z axis travel
1020/300/410 mm
Distance from spindle nose to table surface
50-460mm
Distance from spindle center to vertical guideway
155 mm
Distance from table center to vertical guideway
235-535 mm

Worktable

Unit

Worktable size
360x1600mm
T slots
3-18*80mm
Max. load bearing of worktable
500kg

Spindle

Unit

Spindle hole taper
7:24 No.50
Spindle power
7.5KW
Max. spindle speed
1500rpm

Feed


Unit

Rapid feed speed
2250/2250/844mm/min
Feed speed range
15-750/15-750/5.7-280mm/min

Machine

Unit

Machine dimension

2327/2067/1720mm
Machine weight
2850kg
