SHL60P High Application
SHL60P High ApplicationSHL60P High ApplicationSHL60P High Application

SHL60P High Application

High Accuracy, Stable, High Automation
CategoriesCNC Horizontal Lathe
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelSHL60P
BrandZOPO Intelligent
CNCFanuc/GNC/KND
Spindle Hole TaperA2-6
Control ModeSemi-closed loop
Update TimeDec 11,2024
Detail Information

SHL60P

High Application

High Accuracy, Stable, High Automation

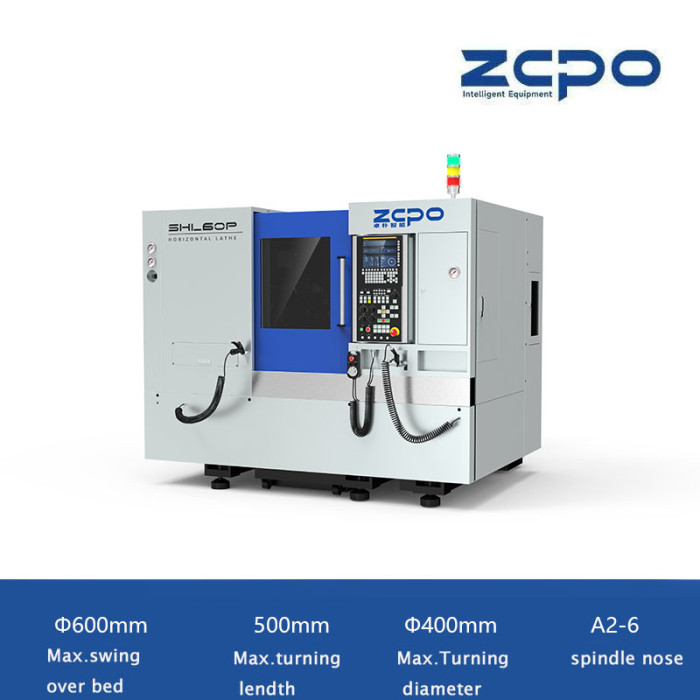

SHL60P

Φ600mm

Max.Swing Over Bed

500mm

Max.Turning Length

Φ400mm

Max.Turning Dia

A2-6

Spindle Hole Taper

  • Model
  • Appearance
  • Characteristic
  • Parameters
  • Contact Us
Appearance
SHL60P
Characteristic
45°床身设计

45° Machine bed design:


The machine adopts a 45 ° angled integral bed, and the material is HT300. Casted by resin sand technology, with a reasonable layout of internal ribs to ensure the overall rigidity of the machine

High Machining Accuracy


By accurately controlling the motion trajectory and cutting parameters of the tool through CNC system, high-precision machining can be achieved, ensuring the dimensional and shape accuracy of the parts
高精度加工
导轨

Linear Guideway


Imported 35# ball linear guideway, with high feed accuracy, low friction resistance, good rigidity, high resistance to vibration and deformation, which can enable users to achieve high processing accuracy and improve the speed of rapid movement, achieving high production efficiency

Spindle Box


 a single spindlebox with a large span of 615, made of the same casting material and process as the bed, ensuring the stability and accuracy of the spindle operation.
主轴箱
Parameters

Working Range

Unit

Max. Swing Over Bed
Φ600 mm
Max.Turning Length
500 mm
Max.Turning Dia
Φ400 mm
Max. Swing Over Carriage
Φ360 mm
X/Z Axis Travel
210/560 mm

Spindle

Unit

Spindle Hole Taper
A 2-6
Max. Passing Bar Dia.
Φ50 mm
Spindle Speed Range
50-4500 mm
Power
11/15 mm
Standard Chuck Dia.
8'' inch

Feed

Unit

Rapid Feed Rate
30/30m/min

Tailstock

Unit

Tailstock Spindle Taper
5# T

Turret

Unit

Standard Turret
8(Hydraulic)T
Nearby Tool Select
Yes

Machine

Unit

Machine Dimension
2850*1865*1880 mm
Machine Weight
4500 kg
