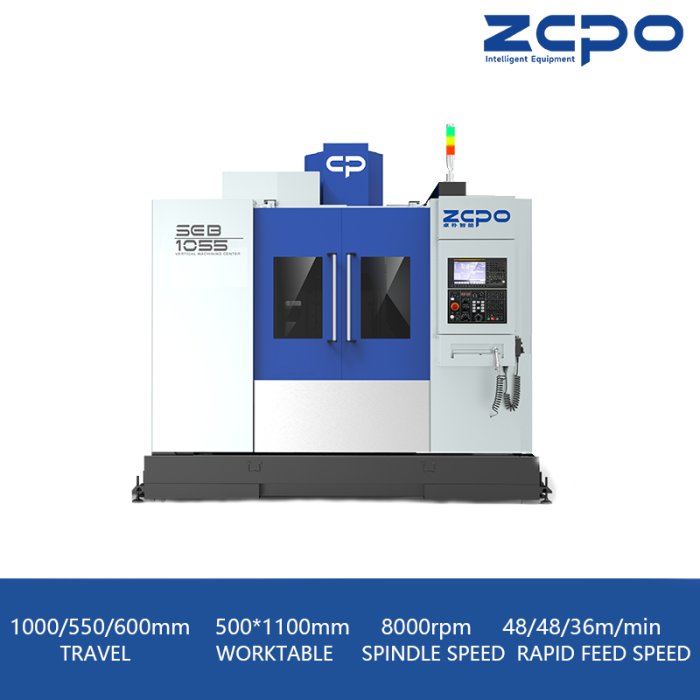

SEB1055 Belt spindle
Categories | SE Series - Efficiency Models |
---|---|
Brand | ZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM |
Model | SEB1055 |
Brand | ZOPOCNC |
CNC | FANUC/SIEMENS/MITSUBISHI |
SPINDLE | BELT SPINDLE |
CONTROL | SEMI-CLOSED LOOP CONTROL |
Update Time | Dec 11,2024 |
SEB1055
Efficiency model
The best choice for pan-aluminum processing, high-precision molds, and parts processing
1000/550/600mm
X/Y/Z axis travel
500×1100mm
Worktable size
8000rpm
Spindle speed
48/48/36m/min
Rapid feed speed
- Model
- Appearance
- Charasteristics
- Parameters
- Contact Us
High rigidity and high precision structural design
- After FEA, the integral bed with reinforcement is made of dense baked cast iron casting, which has better rigidity in the same size machine tool.
- The bed and saddle are designed with triangular stabilizing structure, which strengthens the rigidity of the main load-bearing parts, thus ensuring the stability of accuracy.
- Spindle box structure, while doing lightweight design, combined with FEA, to enhance the rigidity of the spindle box and dynamic response capability.
- The lightweight design of the moving parts further improves the dynamic response speed of the machine tool.
Easier to use and more powerful control system
Relying on the in-depth collaboration between ZOPO engineers and CNC system companies, we continuously carry out secondary development based on standard CNC systems to create multifunctional and intelligent human-machine interfaces, creating a more efficient and convenient user experience for customers.
- Selection of energy-efficient processing modes
- Tool management function
- Troubleshooting guide function
- Super powerful human-computer interaction interface.
Stronger processing applications
SE series vertical machining centers have leading capabilities in the machining of non-ferrous metals. With high speed, high precision and flexible expansion space, it is the first choice for automated group line machining and is widely used in high-tech industries such as automotive parts, molds and aerospace.
- Larger machining range
- Higher machining stability
- Faster dynamic response
- Higher metal removal capability
Working range
- X/Y/Z axis travel
- 1000/550/600mm
- Distance from column to spindle center
- 597mm
- Distance from table surface to spindle nose
- 120-720mm
Worktable
- Worktable size
- 500x1100mm
- T-slot size
- 5-18*100mm
- Max. load bearing of worktable
- 600kg
Spindle
- Spindle hole taper
- BT40
- Main motor power
- 11/15KW
- Spindle speed
- 8000(belt)rpm
Feed
- Max. feed speed
- 12000mm/min
- Rapid feed speed
- 48/48/36m/min
Tool magazine
- Tool magazine capacity
- 24T
- Tool change time
- 2.5S
Accuracy
- Positioning accuracy
- 0.008mm
- Re-positioning accuracy
- 0.004mm
Machine
- Machine dimension
- 2650*2700*2850mm
- Machine weight
- 4800kg
