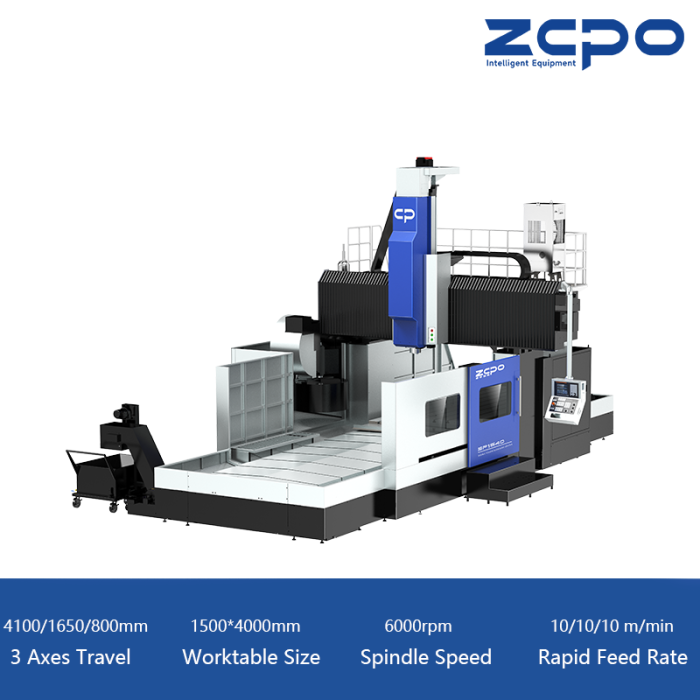

SP1540 Belt spindle T type ram
SP1540 Belt spindle T type ramSP1540 Belt spindle T type ramSP1540 Belt spindle T type ram

SP1540 Belt spindle T type ram

ZOPO Classic T type ram double column machining center:The first choice for processing small molds, mechanical parts, petroleum, aviation, rail transportation and other industries
CategoriesClassic T Type Ram Series
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelSP1540
BrandZOPOCNC
CNCFANUC/SEIMENS/MITSUBISHI
SpindleBelt spindle
ControlSemi-closed loop control
Update TimeDec 10,2024
Detail Information

SP1540

Classic T type ram series

The first choice for processing small molds, mechanical parts, petroleum, aviation, rail transportation and other industries

SP1540

4100/1650/800mm

TRAVEL

1500x4000mm

WORKTABLE

6000rpm

SPINDLE SPEED

10/10/10m/min

RAPID FEED RATE

  • Model
  • Appearance
  • Characteristics
  • Parameters
  • Contact Us
Appearance
SP1540
Characteristics
I经典系列 T型滑枕1

Serialized and modular design


  • ZOPO classic T type ram series double column machining center adopts advanced design concept, combined with Finite Element Analysis(FEA), which can effectively reduce the deformation of the machine during machining, and improve the machining accuracy and accuracy retention at the same time.
  • Modular design provides customers with more configuration options.
  • I经典系列 T型滑枕2
  • The products are rich in variety and complete series to meet the processing needs of different industries; suitable for aluminum alloy, cast iron, steel and other materials.
  • The overall appearance design easy the operation and maintenance after comprehensive study of ergonomics , especially optimized design of waterproof and chip removal system.
  • 高稳定、高精度结构

    High precision and high stability structural design


    All castings are made of high-strength gray cast iron with vibration absorption ability, and are aged to ensure stability. The reinforcing ribs are well designed to have excellent bending resistance to ensure the stability of the machine tool.
    • Ram:Optimal central symmetrical spindle box design; hard rail with extra-large cross-section and high rigidity; overall rigidity increased by 20%.
    • Worktable:The worktable is hollowed out, and the moving parts are lightweight, which improves the response speed of the worktable.
    • Machine body:One-piece casting bed and internal reinforcement rib design ensure stability and high rigidity; simplify assembly process, reduce assembly errors caused by personnel, and improve machine tool stability.
    • Beam:The optimal stepped beam and saddle design shifts the overall center of gravity of the spindle box backwards, increasing the machining rigidity.

    Easier to use and more powerful control system


    Relying on the in-depth collaboration between ZOPO engineers and CNC system companies, we continuously carry out secondary development based on standard CNC systems to create multifunctional and intelligent human-machine interfaces, creating a more efficient and convenient user experience for customers.
    • Selection of energy-efficient processing modes
    • Tool management function
    • Broken tool detection function
    • Troubleshooting guide function
    • Super powerful human-computer interaction interface
    更易用更强大的控制系统
    Parameters

    Working range

    Unit
    X/Y/Z axis travel
    4100/1650/800mm
    Distance between two columns
    1650mm
    Distance from table surface to spindle nose
    160-960mm

    Worktable

    Unit
    Worktable size
    1500x4000mm
    T-slot size
    9-22*160mm
    Max. load bearing of worktable
    8000kg

    Spindle

    Unit
    Spindle hole taper
    BT50
    Main motor power
    15/18.5(wide area)KW
    Spindle speed
    6000(Belt)rpm

    Feed

    Unit
    Max. feed speed
    8000mm/min
    Rapid feed rate
    10/10/10m/min

    Accuracy

    Unit

    Positioning accuracy
    0.030/0.016/0.016mm
    Re-positioning accuracy
    0.014/0.012/0.008mm

    Machine

    Unit
    Machine dimension
    10800*5000*5100mm
    Machine weight
    28000kg
