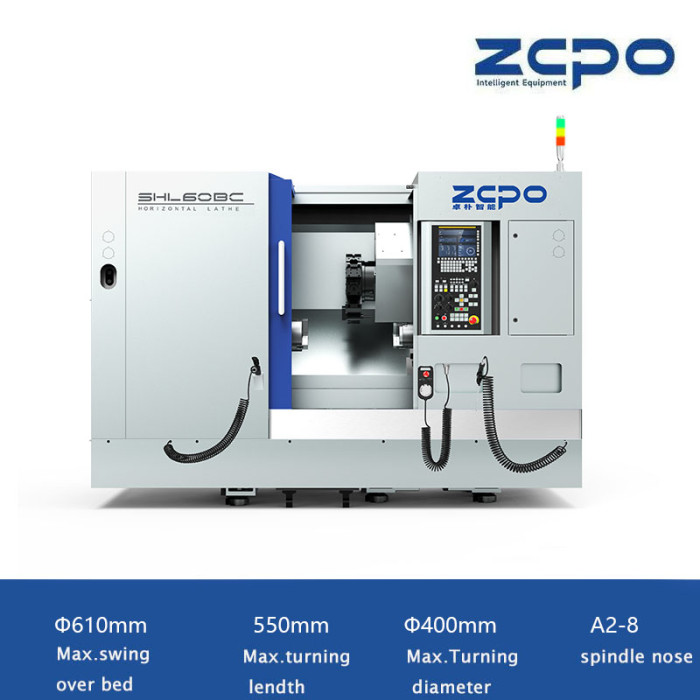

SHL60BC High Capability Driven-Turret
SHL60BC High Capability Driven-TurretSHL60BC High Capability Driven-TurretSHL60BC High Capability Driven-Turret

SHL60BC High Capability Driven-Turret

Highly Integrated、High Accuracy
CategoriesCNC Horizontal Lathe
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelSHL60BC
BrandZOPO Intelligent
CNCFanuc/Siemens/Mitsubishi/GNC/KND
Spindle Hole TaperA2-8
Control ModeSemi-closed loop
Update TimeDec 10,2024
Detail Information

SHL60BC

High Capability

Highly Integrated、High Accuracy

SHL60BC

Φ610mm

Max.Swing Over Bed

550mm

Max.Turning Length

Φ400mm

Max.Turning Dia

A2-8

Spindle Hole Taper

  • Model
  • Appearance
  • Characteristic
  • Parameters
  • Contact Us
Appearance
SHL60BC
Characteristic
床鞍设计

Highly Integrated


Integrating turning and milling functions reduces the conversion of workpieces between different machines, improving processing efficiency and accuracy consistency

High Accuracy&Multi Axis Linkage


High accuracy machining: capable of processing parts with complex shapes and high-precision requirements, ensuring the dimensional accuracy, shape accuracy, and surface quality of the parts. It can be equipped with automatic tool changing systems, automatic loading and unloading devices, etc., to achieve highly automated production, reduce manual intervention, and improve production efficiency
Multi axis linkage: usually has multiple coordinate axes, which can achieve multi axis linkage machining and complete the machining of complex spatial surfaces and irregular structures
高刚性伺服刀架
Parameters

Working Range

Unit

Max. Swing Over Bed
Φ610mm
Max.Turning Length
550mm
Max.Turning Dia
Φ400mm
Max. Swing Over Carriage
Φ400mm
X/Z Axis Travel
240/610mm

Spindle

Unit

Spindle Hole Taper
A2-8
Max. Passing Bar Dia.
Φ70mm
Spindle Speed Range
50-3500mm
Power
11/15mm
Standard Chuck Dia.
10'' inch

Feed

Unit

Rapid Feed Rate
30/30m/min

Tailstock

Unit

Tailstock Spindle Taper
5# T

Turret

Unit

Standard Turret
12(Driven)T
Nearby Tool Select
Yes

Machine

Unit

Machine Dimension
2950*1700*1865mm
Machine Weight
4700kg
