XK6132 Horizontal miling arbor Rotary Worktable
XK6132 Horizontal miling arbor Rotary WorktableXK6132 Horizontal miling arbor Rotary WorktableXK6132 Horizontal miling arbor Rotary Worktable

XK6132 Horizontal miling arbor Rotary Worktable

ZOPO CNC Milling machine, Horizontal miling arbor
CategoriesCNC Milling Machine
BrandZOPO INTELLIGENT EQUIPMENT MACHINING CENTER OEM
ModelXK6132
BRANDZOPO CNC
CNCFANUC/KND/HNC
CONTROLHorizontal miling arbor
Update TimeDec 10,2024
Detail Information

XK6132

CNC KNEE TYPE MILLING MACHINE

XK6132

700/300/280mm

X/Y/Z axis travel

320×1320mm

Worktable size

1500rpm

Spindle speed

4000/3000/2000mm/min

Rapid feed speed

  • Model
  • Appearance
  • Characteristic
  • Parameters
  • Contact Us

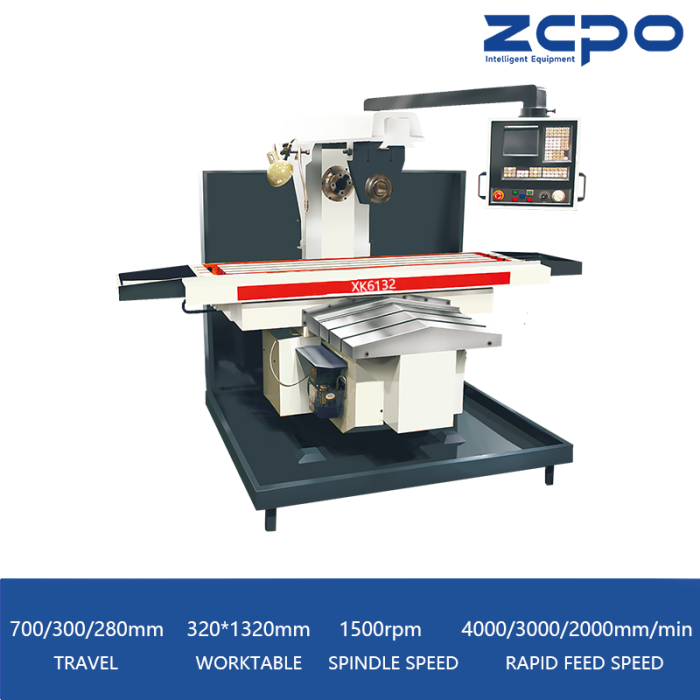

Appearance
XK6132
Characteristic
结构钢性

Rigidity structure +Stability precision


This horizontal knee type milling machine has high rigidity structure and stable precision. Three direction of guideways have adopted wear-resistant measuresment to maintain high accuracy and long life.
This CNC knee type milling machine has high rigidity structure and stable precision. Configured with high performance numerical control system, which can achieve X Y Z combined
The machine has complete functions, high degree of automation, easy operation and reliable performance.

High rigidity and stability of mechanical structure


The spindle is driven by a fully enclosed flanged disk motor YE2-160M-6-B5, which is with power of 7.5kW, spindle speed 975rpm, it is transmit by a flexible coupling and the gear of the speed change mechanism. Depend on the mechanism, the spindle speed range from 30-1500rpm, 18 steps.
3 axe adopt high-precision ball screws, Y axis driven by motor directly, others driven by the synchronous belt, which devoted to high precision.
Three directions guideway are equipped with quenching and plastic coating, which can improve to high accuracy and long life.
高刚性
加工应用能力

Extensive Application


This machine has advantages on maching complex and high presision products, no matter for one piece or big batch, like cam, sample, module, arc groove and so on.
More machining can achieve with some accessories like universal indexing head, circular table and so on.
Parameters

Working range

Unit

X/Y/Z axis travel
700/300/280 mm
Distance from spindle nose to table surface
110-390 mm(spindle center)
Distance from table center to vertical guideway
285-585 mm

Worktable

Unit

Worktable size
320x1320mm
T slots
3-18*80mm
Max. load bearing of worktable
500kg

Spindle

Unit

Spindle hole taper
7:24 No.50
Spindle power
7.5KW
Max. spindle speed
1500rpm

Feed

Unit

Rapid feed speed
2000mm/min
Feed speed range
4000/3000/2000mm/min

Accuracy

Unit

Positioning accuracy
0.025mm
Re-positioning accuracy
0.015mm

Machine

Unit

Machine dimension
2245*1780*1920mm
Machine weight
3100kg
